0813-1X1T-M1-F Tab Down 1000 Base-T POE RJ45 Jack 1 Port Without Led RoHS

Product Categories
LINK-PP INT'L TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

0813-1X1T-M1-F Tab Down 1000 Base-T POE RJ45 Jack 1 Port Without Led RoHS

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPJxxxxxx

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000

Price : OEM Price

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton

Original : 0813-1X1T-M1-F

Equivalent : LPJxxxxxx

Ethernet Aplly : 1000 Base-T

Samples : Free Available

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More than 20Years

Contact Now

0813-1X1T-M1-F Tab Down 1000 Base-T POE RJ45 Jack 1 Port Without Led RoHS

The 0813-1X1T-M1-F supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.
LINK-PP Part Number LPJxxxxxx
Part Number 0813-1X1T-M1-F
PoE Rating POE
Part Status Active
Speed 1000 BASE-T
Connector Type Jack
Number of Positions/Contacts 12p8c (RJ45, Ethernet)
Cores per Port 8
LED Option Without Led
Latch Tab Down
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (Inches/mm) 0.538/13.67
Package Length (Inches/mm) 1.200/30.48
Package Width (Inches/mm) 0.644/16.36
Shield EMI Tabs WITH


0813-1X1T-M1-F Tab Down 1000 Base-T POE RJ45 Jack 1 Port Without Led RoHS

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.09-$1.85 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

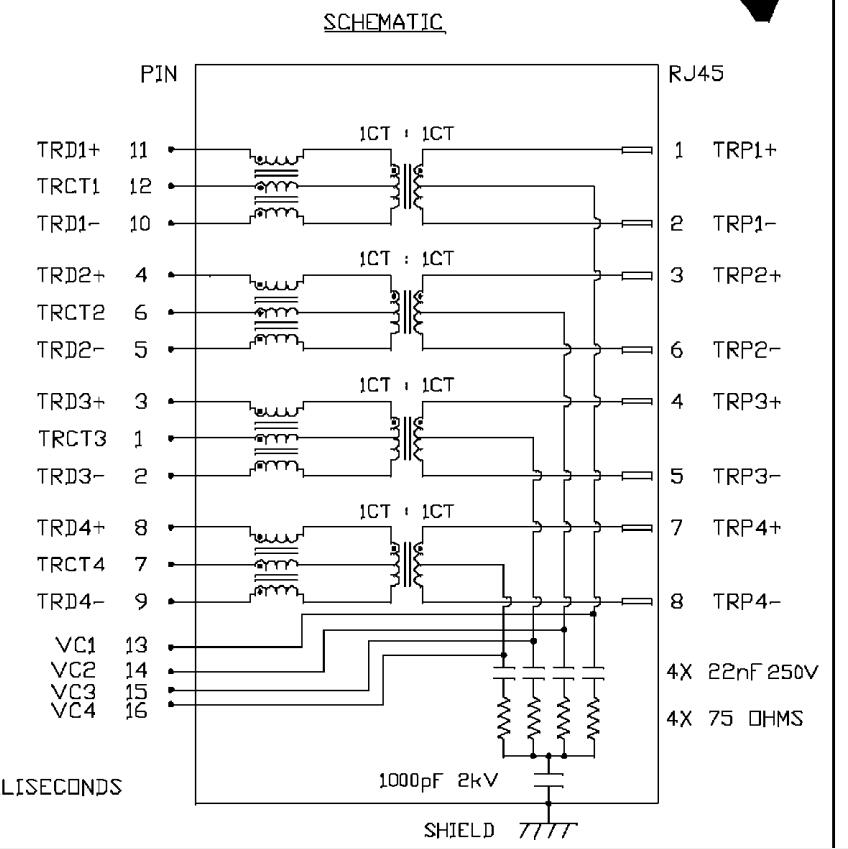

0813-1X1T-M1-F POE RJ45 Jack Electrical Schematic:
0813-1X1T-M1-F Tab Down 1000 Base-T POE RJ45 Jack 1 Port Without Led RoHS


0813-1X1T-M1-F Tab Down RJ45 MagJack Similar products:

0813-1X1T-M1-F Tab Down 1000 Base-T POE RJ45 Jack 1 Port Without Led RoHS

0813-1X1T-M1-F Rj45 Magjack Similar Part Number :

0826-1X1T-KL-F 0875-1A1T-P2 L8BJ-1K1T-KDE
0813-1X1T-M1-F 0826-1X1T-M1-F 0826-1X1T-JK-F


0813-1X1T-M1-F Magnetic RJ45 Jack Description:


1.0813-1X1T-M1-F PoE RJ45 Jack
2.0813-1X1T-M1-F 1000 Base-T Magnetic RJ45 Connector
3.0813-1X1T-M1-F 1x1 Port RJ45 MagJack With Led
4.0813-1X1T-M1-F Tab Down POE RJ45 Jack

0813-1X1T-M1-F OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as network connector and lan magnetics or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

0813-1X1T-M1-F Tab Down 1000 Base-T POE RJ45 Jack 1 Port Without Led RoHS
