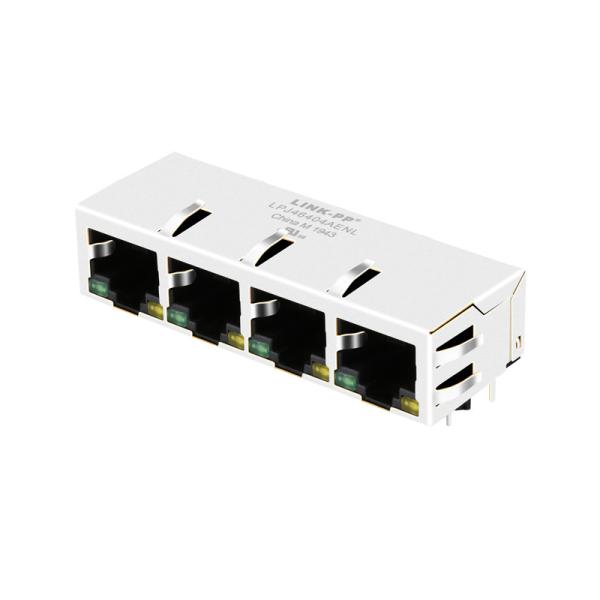

| Package | Bulk |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications | 10/100 Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90℃ Angle (Right) |
| Termination | Solder |
| Height Above Board | 0.526" (13.36mm) |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 4 |
| Shielding | Shielded, EMI Finger |
| Features | Board Guide |
| Tab Direction | Down |
| Contact Material | Phosphor Brass |
| Contact Finish | Gold |
| Operating Temperature | -40℃ ~ 85℃ |
| Contact Finish Thickness | 6.00uin (0.152uim) |
| Shield Material | Brass |
| Housing Material | Thermoplastic |
| Number of Ports | 4 |
| Number of Rows | 1 |

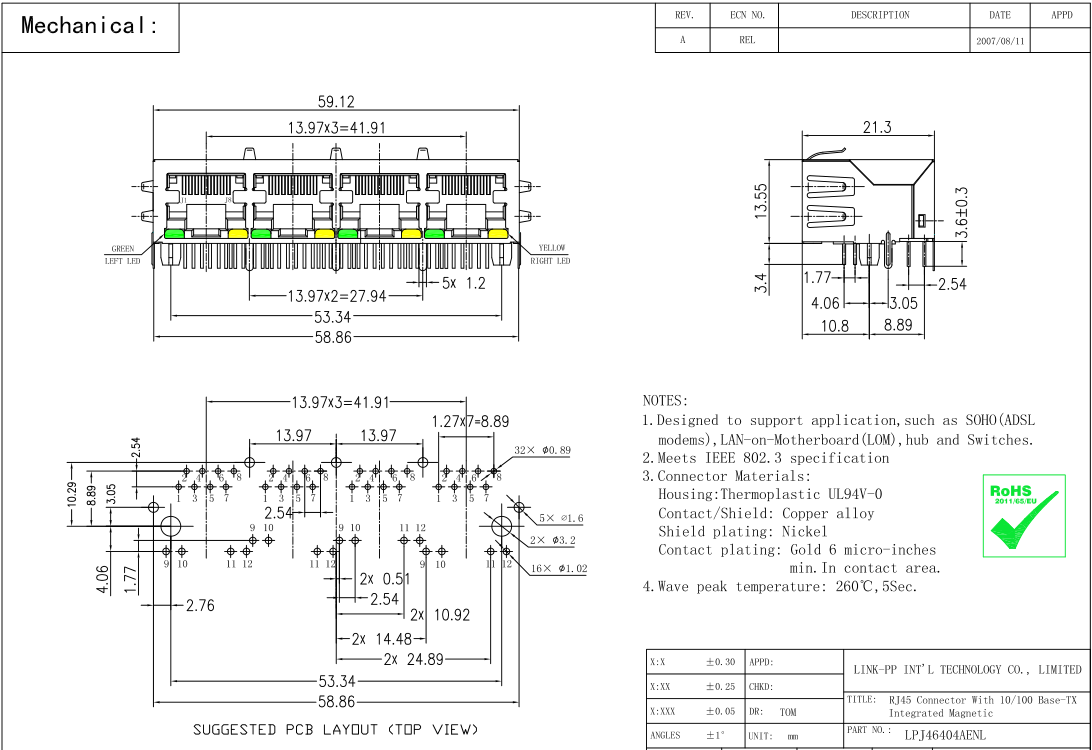

JXD0-4005NL CONN,RJ45,1X4,100D,1:1,TY NPB
CONTACT MATING AREA PLATING GOLD 30 U''
LATCH DOWN
LED OPTION GREEN & YELLOW
NUMBER OF PORTS 1X4
PACKAGE THT
PACKAGE HEIGHT MM 13.500
PACKAGE LENGTH MM 21.350
PACKAGE WIDTH MM 59.050
PCB MOUNT ANGLE SIDE ENTRY
POE RATING NON-POE
ROHS COMPLIANT YES-RoHS-6
SPEED 100BASE-TX
TEMPERATURE -40 TO +85
TURNS RATIO 1:1
Packaging Tray
Part Status Active
Connector Type RJ45
Number of Ports 4
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.531" (13.49mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material Copper Alloy
Contact Finish Gold
Operating Temperature -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Thermoplastic
