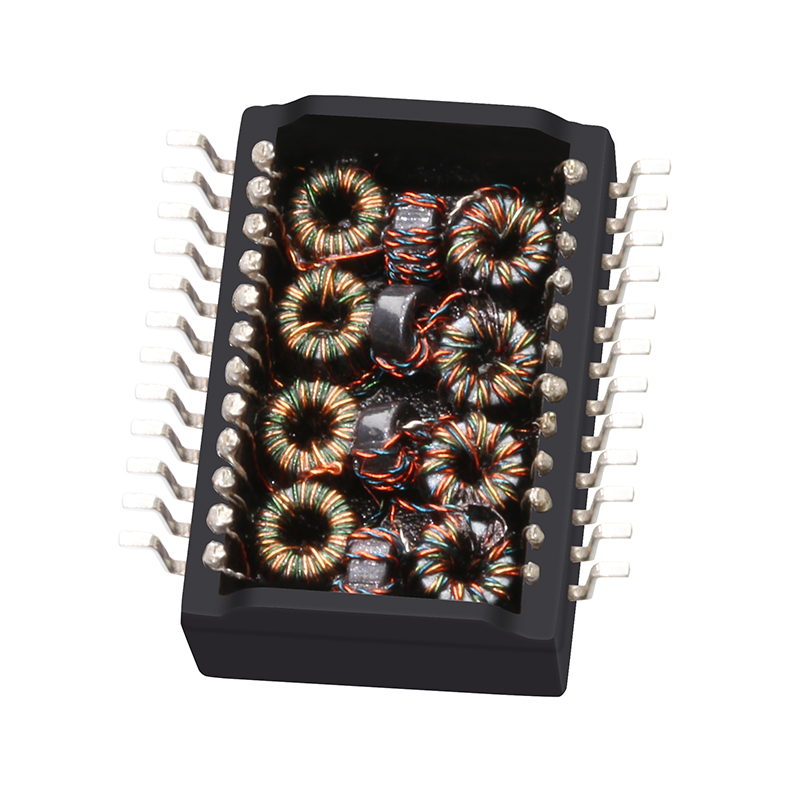

LP5007NL Ethernet Gigabit Transformer 10/100/1000 BASE-T Single Port SMT GT0002
| Specification | P/N | Manufacturer | Description |
| LP5007NL | LP5007NL | LINK-PP | 1000BASE-T SINGLE PORT 1:1 SMT |
| |
| Series | Transformer Type | Applications | Turn Radio |
| Transformer | Isolation and Data Interface | 10/100/1000 Base-T | 1:1 |
| |
| Mounting Type | Size / Dimension | Height - Seated (Max) | Unit Price
(USD) |
| Surface Mount | 17.70x15.80 | 6.6mm | Supportive |
| You may be interesting in below considerate supports: |
| Datasheet | Request by email to | contact us |
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping |
| Company Name | |
| Delivery Address | |
| Telephone Number | |
| Contact Person | |
| UPS/DHL/Fedex/TNT A.C | (If available) |
| Trial Production | U/P(USD) | $0.08-$2.40 | We can ship out parts directly to your warehouse/door to door |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Mass Production | U/P(USD) | Stock | |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Lifecycel | More than 20 years | You can use our parts for long term consideration |
| Reject Ratio | Zero Defective (100% Tested) |
| Special Services | Accept customized service | Accept revised designing |
| Now you can contact us instantly |
Electrical Specifications @25℃
1.Turns Ratio: 1CT:1
2.OCL: 350uH min
@100KHz,100mV,8mADC Bias
3.Insertion Loss(dB max):
1-65MHz:-1.0 65-100MHz:-1.1
100-125MHz:-1.5
4.Return Loss(dB min):
1-30MHz:-18 40MHz:-18
50MHz:-16 60-80MHz:-12
100MHz:-10
5.Crosstalk(dB min):
30MHz:-45 60MHz:-40
100MHz:-35
6.DCMR:(dB min):
30MHz:-43 60MHz:-37
100MHz:-33
7.Isolation Voltage: 1500Vrms min
Magnetics are part of the Ethernet specification for xBASE-T networks, and as such, they are required for all Ethernet enabled equipment. The magnetics protect against faults and transients, including rejection of common mode signals between the transceiver IC and the cable.
