2.5G HB4015HLT PoE Ethernet Transformer RoHS and Halogen Free

Name: 25G HB4015HLT PoE Ethernet Transformer RoHS and Halogen Free
Brand: LINK-PP
Price: 0.09 USD

2.5G HB4015HLT PoE Ethernet Transformer RoHS and Halogen Free Manufactures

Brand Name : LINK-PP

Model Number : HB4015HLT

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50pcs

Price : $0.09-$2.3

Payment Terms : TT, NET30/60/90 Days

Supply Ability : 6.5million pieces per month

Delivery Time : Ships within 10 days

Packaging Details : Tape and Reel

Product Name : HB4015HLT LAN Magnetic Transformer

Number of Channels/Ports : 1

PoE Power Rating : 60W/ Surge DM 4.3KV

Data Rate : 2.5 Gigabit

Maximum Peak Solder Temperature : 245°C

Moisture Sensitive : 1 Level

Application : Ethernet Transformer/Choke

Turns Ratio : 1CT:1CT

Contact Now

2.5GBase T Single Port Transformer Description:

Pulse HB4015HLT PoE SMD Magnetic Modules are designed to meet or exceed the IEEE802.3bz/at/bt standard. Available in 0-70°C operating temperature ranges with 4P PoE. discrete Ethernet transformers support 2.5G speed backward compatibility with slower data rates and gigabit PHYs.

Key Features:

LAN Discrete Modules with 60W PoE power.
HB4015HLT meets IEEE802.3bt standards for 2.5GBase-T Ethernet connections.
The operating temperature range is 0-70°C, and the storage temperature range is -20°C - +125°C.
Fully RoHS Compliant and Halogen Free.
Reliable surface mount device (SMD) packages support 245°C peak reflow temperature.
All components are supplied in tape and reel packaging for easy handling and storage.

Parameters of HB4015HLT PoE Magnetics:

Product Type	PoE Ethernet Transformer
Number of Channels/Ports	Single
Data Rate	2.5GBASE-T
PoE Power	60W PoE 4 Pair
Mounting	SMT
Length	17.55 mm
Width	15.90 mm
Height	6.00 mm
Application	ETHERNET TRANSFORMER/CHOKE
Turns Ratio	1CT:1CT
Isolation Voltage (V)	1500VAC
Moisture Sensitive Level	1
Maximum Peak Solder Temperature	245°C
Mounting Style	24 PIN SMD
Breakdown Voltage	1500Vrms (Surge DM 4.3KV)
Winding Configuration	XFM/ 2 wCMC

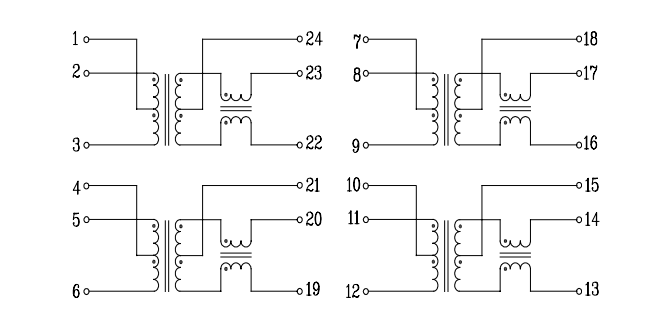

HB4015HLT Schematics:

2.5G HB4015HLT PoE Ethernet Transformer RoHS and Halogen Free

Carton Package of HB4015HLT LAN Transformer:

1 REEL = 350PCS
1 INNER BOX = 1 REEL = 350PCS
1 OUTER BOX = 5 INNER BOXES = 1750PCS

Product Tags:

HB4015HLT

2.5G Single Port Transformer

HB4015HLT POE Transformer
