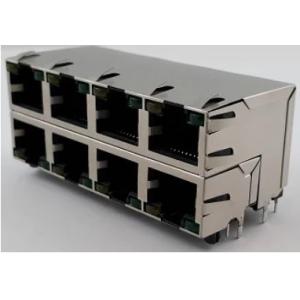

Stacked 2x4 RJ45 Modular Jacks RJSAE538A08 Shielded With EMI Tabs

  • 1
  • 2

Brand Name : LINK-PP

Model Number : RJSAE-538A-08 / RJSAE538A08

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 200/1000 pcs

Price : $0.09-$2.3

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 5KK/Month

Delivery Time : Stock

Packaging Details : Tray

Ports : 2x4

Termination Style : Through Hole

Shield Type : EMI Tabs

LED Option : Yes

Light Pipe : No

Latch Orientation : Both Up and Down

Body Orientation : Right Angle

Stacked : Stackable

Contact Now

RJ45 2x4 Specification Details​:

Part Number RJSAE-538A-08 / RJSAE538A08
Part Status Active
Type Stacked RJ45 Connector
Number of Ports 8 Ports
Number of Rows 2 Rows
Number of Positions 8 Positions
Number of Contacts 8 Contacts
Application 10/100 Base-T
Performance Category Cat 5
Tab Direction Up and Down
LED L / R Color Green, Yellow / Green, Yellow
Shielding Shielded, EMI Finger
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Operating Temperature -55°C ~ 85°C
Current Rating 1.5 A
Voltage Rating 125 VAC
Insulation Resistance 500 MOhms
Contact Material Phosphor Bronze
Contact Plating Gold
Flammability Rating UL 94 V-0
IP Rating IP20
Mating Cycles 750 Cycles
Packaging Tray

RJSAE-538A-08 Stacked RJ45 Connector Applications​:

  • 5G Wireless
  • Telephones
  • Modems
  • Fax Machines
  • Copiers/printers
  • Security Systems
  • Set Top Boxes
  • Video Game Systems
  • PCs
  • Laptops
  • Storage
  • Servers
  • Routers
  • Switches
  • Hubs
  • Uninterruptible Power Supply (UPS)
  • ATMs
  • Vending Machines
  • POS Terminals
  • Industrial IoT Platforms
  • Analysis equipment
  • Mass Spectrometers
