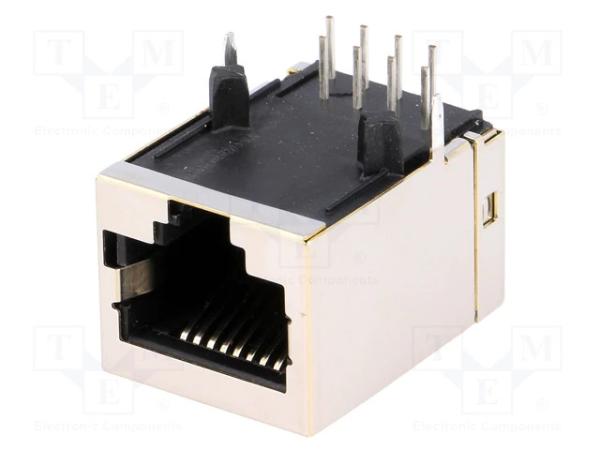

5557786-1 Single Port Shielded RJ45 Jack Cat 3 Performance Category

Name: 55577861 Single Port Shielded RJ45 Jack Cat 3 Performance Category
Brand: LINK-PP
Price: 0.15 USD

5557786-1 Single Port Shielded RJ45 Jack Cat 3 Performance Category Manufactures

Brand Name : LINK-PP

Model Number : 5557786-1

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 90pcs

Price : $0.15-$1.25

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4200K-PCS/Month

Delivery Time : Stock

Packaging Details : Box & Tray, Tray

Modular Jack Interface Type : RJ45

Port Configuration : Single Port 1 x 1

Connector Contact Density : Standard

Number of Positions : 8

PCB Mount Orientation : Right Angle

Termination Method to PCB : Through Hole - Solder

Contact Now

UL 94 V-0 UL 94 V-0 Flammability Rating5557786-1 Single Port Modular Jack Specifications:

Part Status	Active
Connector Type	RJ45 Modular Jacks
Number of Ports	1
Number of Rows	1
Product Dimensions	15.87 x 21.34 x 13.64 mm mm
Modular Jack Latch Orientation	Standard - Latch Down
Orientation	90° Angle (Right)
Termination	Solder
Tail Length	3.56 mm [ 0.14 in ]
Pitch	2.54 mm
LED Color	Green/ NO LEDs
Number of Contacts	8
Number of Terminals	10
Current Rating	200 mA, 1.5 A
Voltage Rating	150 V
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
LAN Category	Cat3
Flammability Rating	UL 94 V-0
Max Processing Temp	265°C
Operating Temperature	-40 to 80 °C

Shielded RJ45 Jack Materials:

Housing Color: Black
Housing Material: PCT Polyester
PCB Contact Termination Area Plating Material: Tin
Contact Underplating Material: Nickel
Contact Mating Area Plating Material: Gold
Contact Base Material: Phosphor Bronze
Contact Mating Area Plating Material Thickness: 1.27 µm [ 50 µin ]
Shield Material: Copper Alloy
Shield Plating Material: Tin
Flammability Rating UL 94 V-0

Shielded RJ45 Connectors Functions:

1. Reducing Electromagnetic Interference (EMI)
2. Minimizing Radio Frequency Interference (RFI)
3. Improving Signal Quality against radio frequency noise
4. Preventing Crosstalk: especially in high-speed networking environments.
5. Protecting Sensitive Data: ensuring more reliable and stable connections.
6. Supporting High-Speed Data Transmission
7. Durability and Protection: added physical protection to the connector, making it more robust for harsh environments.
