10/100 Base-T 8 Pin Magnetic RJ45 Connector for Smart Meters and Satellite (Single Port, Tab Down, Green/Yellow Led)
The LPJ0011INL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Meters, Solar Inverter, Automation and Video Recorder.
LINK-PP Part Number:
LPJ0011INL
Connector Type
Jack
Part Status
Active
Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet)
Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 Port
Speed
10/100 Base-T
Latch
Down
Cores per Port
4
Orientation
90° Angle (Right)
PCB Mount Angle
SIDE ENTRY
Shield EMI Tabs
With
LED Option
Without
PCB
FR4
PCB Retaining Post
T POST

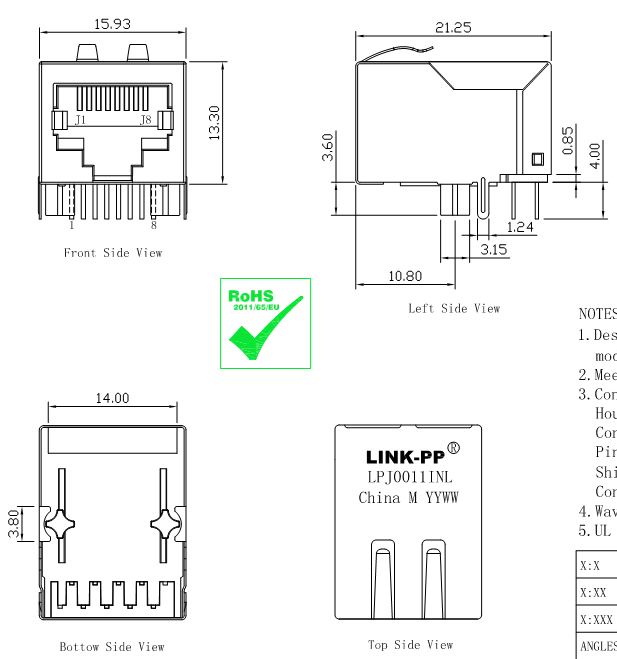

Package Height (Inches/mm)
0.524/13.30
Package Length (Inches/mm)
0.837/21.25
Package Width (Inches/mm)
0.627/15.93
Temperature
0 TO 70℃
Bst Circuit
YES
AutomDX
YES
Diodes
No
Contact Mating Area Plating
GOLD 6u"/15u"/30u"
Turns Ratio RX/TX
1CT:1CT
Configuration RX/TX
T,C
0.007kg
Tray
50pcs
1200pcs
32*30*31cm
8.5kg
