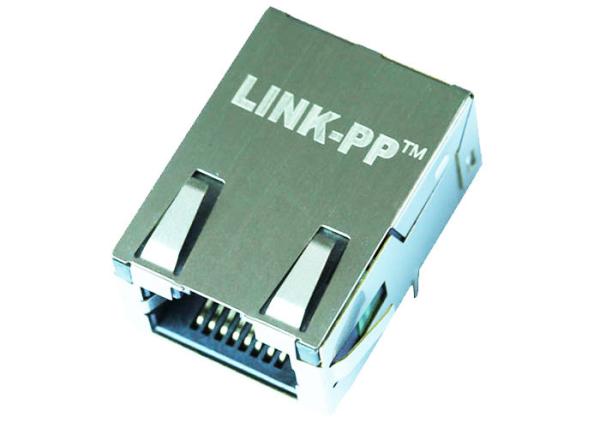

1368458-2 Low Profile Rj45 Connector 10/100 Base-T Magjack LPJK7004SA98NL

Name: 13684582 Low Profile Rj45 Connector 10100 BaseT Magjack LPJK7004SA98NL
Brand: LINK-PP
Price: 0.08 USD

Brand Name : LINK-PP

Model Number : 1368458-2

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 50/500/1000/25K

Price : $0.08-$1.79

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 2800K-PCS/Month

Delivery Time : Stock

Packaging Details : 60pcs/tray,or Reel Package

PN : 1368458-2

Made In China : LPJK7004SA98NL

LEDs : Orange , Green / Yellow

Family : 10/100BT Magnetics

PCB Mounting Orientation : Side Entry Thru-Hole

Hipot : 1500V Input to Output

Contact Now

1368458-2 Low Profile Rj45 Connector 10/100 Base-T Magjack LPJK7004SA98NL

L8AL-1X1T-32A

Trader Part Number

1368458-2

Price Break	Unit Price	Extended Price
1-5	Free	-
10-50	4	-
100-500	3.5	-
1,000-2,500	dynamic	dynamic
5,000	dynamic	dynamic
10,000	Negotiable	Negotiable
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made In China

LPJK7004SA98NL

Manufacturer

LINK-PP

Documents

PDF/IGS/STEP/Cross/Price/Compatible

Lead Free Status / RoHS Status

Lead free / RoHS Compliant

Quantity Available

2,000 PCS / Or 4 weeks

1368458-2 Low Profile Rj45 Connector 10/100 Base-T Magjack LPJK7004SA98NL

Part Number :
1.Turns Ratio(±2%):
TX=1CT∶1CT RX=1CT∶1CT
2.Insertion Loss(dB MIN):
0.5-80MHz:-1.3
3.Return Loss(dB MIN):
0.5-30MHz:-18
30.1-60MHz:-18-20log
60.1-80MHz:-14
4.Crosstalk(dB MIN):
0.5-60MHz:-43
60.1-80MHz:-40
5.Common To Common Mode Rejection:
0.5-80MHz:-33
6.Hi-Pot: 1500VRMS

7.Operating Temperature;0 To 70 ℃
