RJ45 with Integrated Magnetics Connector 5-2301995-4 1GB LED 1X1 VERT

Name: RJ45 with Integrated Magnetics Connector 523019954 1GB LED 1X1 VERT
Brand: LINK-PP
Price: 0.7 USD

Brand Name : LINK-PP

Model Number : 5-2301995-4

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.7-$1.5

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : 50pcs per Tray

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

PCB Mount Orientation : Vertical

Termination : Solder

LED Color : Green, Yellow - Green, Yellow

Shielded : Yes

Features : Board Lock

Tab Direction : Up

Number of Positions : 8

Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]

UL Flammability Rating : UL 94V-0

Performance Category : Cat 5e

Contact Now

Description of Industrial RJ45 Magjack:

The 5-2301995-4 is an industrial-grade RJ45 connector with integrated magnetics. This single-port (1x1) connector features standard contact density and is shielded to protect against electromagnetic interference. It is compatible with Cat 5e cables, and supports 1000Mb/s high-speed Data Rate. The 5-2301995-4 RJ45 Connector is widely used in industrial automation, networking equipment, and telecommunications. Additionally, it is also used for embedded systems and IoT devices.

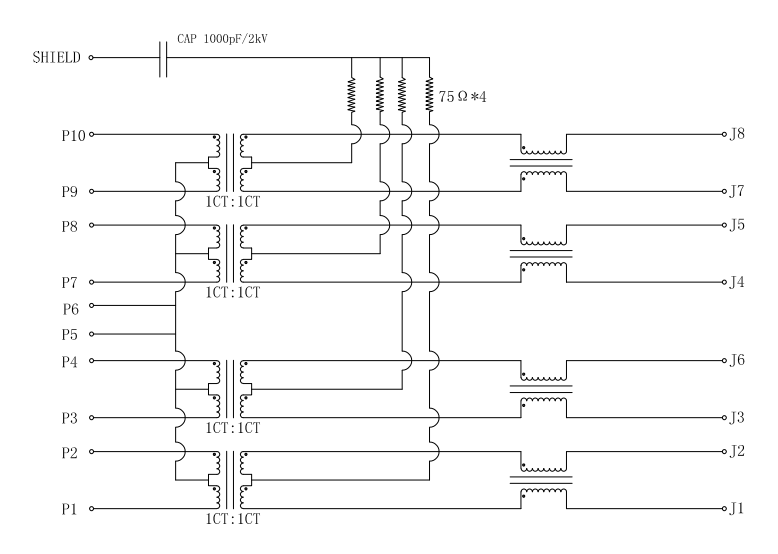

5-2301995-4 Electrical Circuit Diagram:

RJ45 with Integrated Magnetics Connector 5-2301995-4 1GB LED 1X1 VERT

Electrical Speicifications of 5-2301995-4 Vertical RJ45 Jack:

1. Turn Ratio @100kHz:
(P1~ P2):(J1~ J2)= 1:1±2%
(P3~ P4):(J3~J6)= 1:1±2%
(P7~ P8):(J4~J5)= 1:1±2%
(P9~P10):(J7~J8)= 1:1±2%
2. PrimaryInductance: 350MH MIN. @100kHz, 0.1V 8mA DC BIAS
3. DC Resistance:1.2 OHMS MAX
4. Insertion Loss
-1.0dB MAX @ 1-100MHz
-1.2dB MAX @ 100-125MHz
5. Return Loss:
-16dB MIN @ 1-40MHz
-12dB MIN @ 40-60MHz
-10dB MIN @ 60-80MHz
-8dB MIN @ 80-100MHz
6. CROSS TALK:
-30dB MIN1-100MHz
7. COMMON TO COMMON MODE ATTENUATION: -30dB MIN @ 1-100MHz
8. Isolation: PHY Side to Line Side: 2250VDC
