SS-6546-NF RJ45 Modular Jacks Unshielded Vertical Orientation

  • 1
  • 2
  • 3

Brand Name : LINK-PP

Model Number : LPJ0011BBNL

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000/25K

Price : $0.06-$0.8

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4200K-PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton, Carton size/32*30*31cm, G.W./carton/8.5kg

Product Type : Single Port Jack

Number of Ports : 1X1

Orientation : Vertical

Shielding : No

Number of Contacts : 4

Number of Positions : 6

Profile : Low

LED : Without

Contact Now

Specifications of Unshielded Modular Jacks:

  • Connector Type: Modular Jacks
  • Part Number: SS-6546-NF
  • Gender: Jack (Female)
  • Number of Positions/Contacts: 6p4c (RJ11, RJ14)
  • Number of Ports: 1
  • Number of Rows: 1
  • Mounting Type: Through Hole
  • Orientation: Vertical
  • Termination: Solder
  • Shielding: Unshielded
  • Features: Board Lock
  • LED Color: Does Not Contain LED
  • Color: Black
  • Housing: Thermoplastic Ul94 V-0
  • Contacts: Copper Alloy
  • Contact Plating: Selective Gold In Contact Area

SS-6546-NF (LPJE615-1NNL) RJ45 Datasheet:

LPJE615-1NNL.pdf

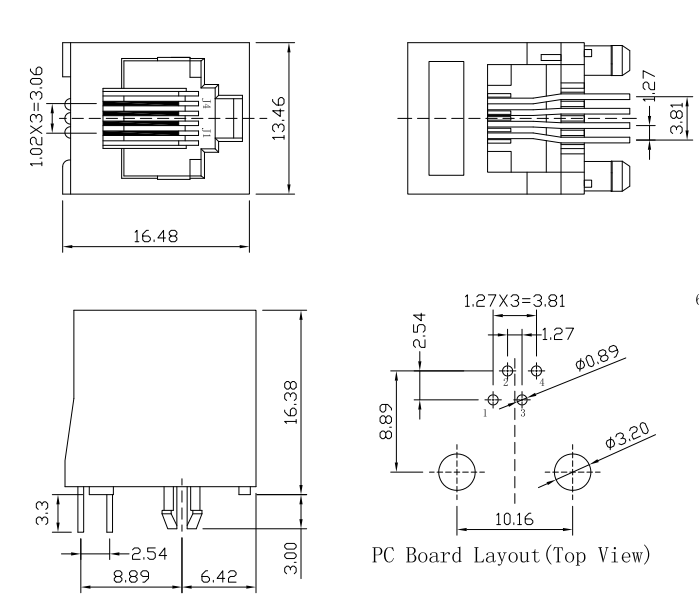

SS-6546-NF RJ45 Modular Jacks Unshielded Vertical Orientation

Notes of 6P4C Vertical RJ45 Jack:

MATERIAL:

1. CONTACT WIRE: 0.46MM DIAMETER PHOSPHOR BRONZE OPTIONAL GOLD PLATING OVER NICKEL

2. DURABILITY: 1000 MATING CYCLES MIN

ELECTRICAL:

1. CURRENT RATING: 1. 5A

2. VOLTAGE RATING: 125VAC RMS

3. CONTACT RESISTANCE: 20MΩ MAX

4. INSULATION RESISTANCE:100MΩ MIN

5. WITHSTANDING VOLTAGE:1000V AC FOR 1min.

6. GOLD PLATING: (GOLD FLASH:1.5; 3; 6; 15; 30; 50)U" INCH

7. (1) STORAGE TEMPERATURE RANGE:-40℃ to +85℃

(2) 0PERTIONTEMPERATURE RANGE: -40℃ to +85℃

(3)WAVE SOLDER TEMPERTURE: 230C to 250℃5~10 SEC.

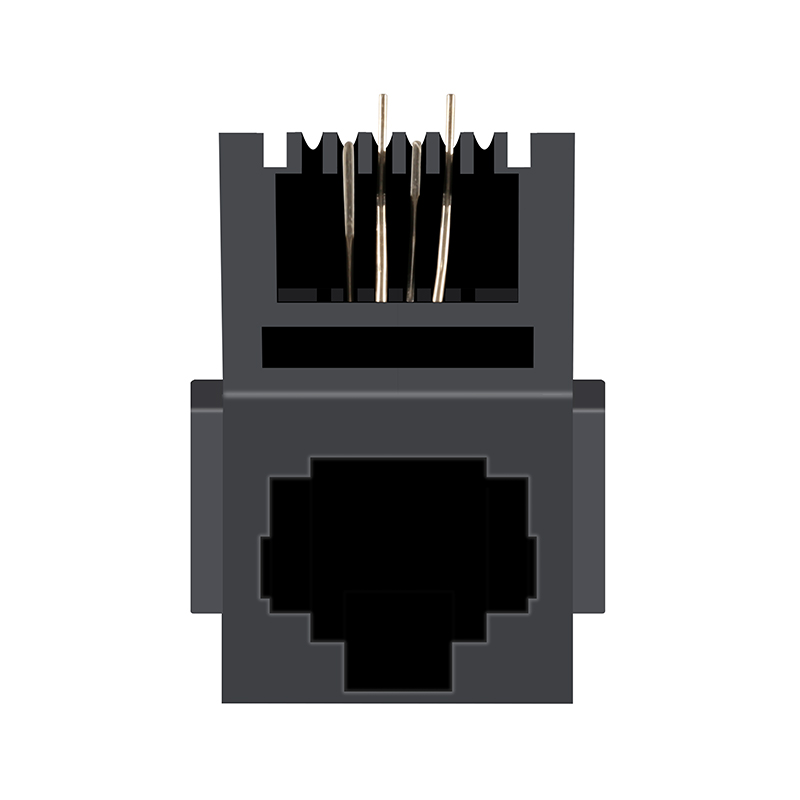

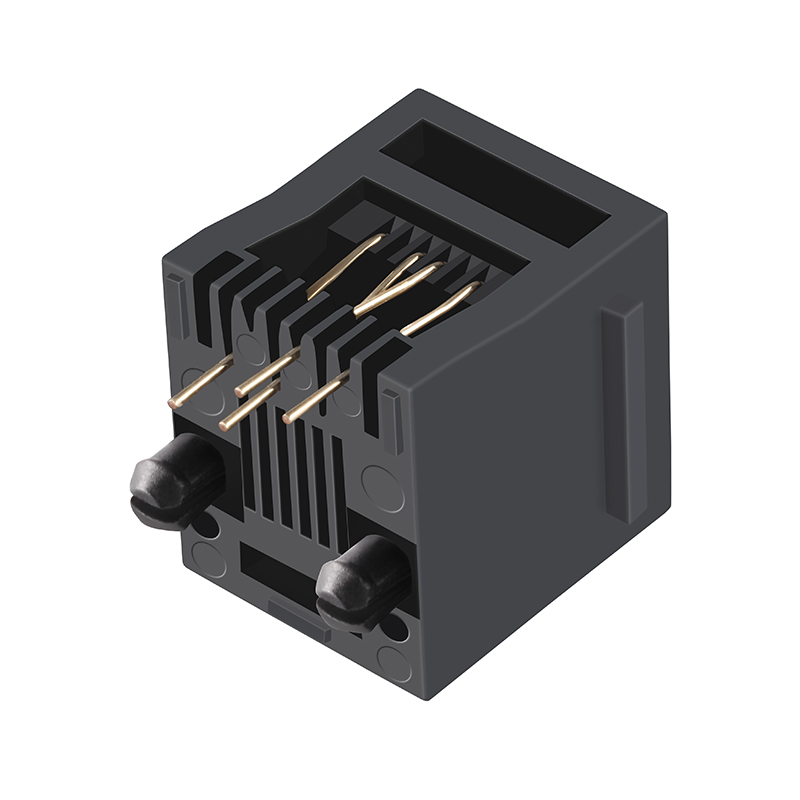

Details of SS-6546-NF 6P4C Jack:

SS-6546-NF RJ45 Modular Jacks Unshielded Vertical OrientationSS-6546-NF RJ45 Modular Jacks Unshielded Vertical Orientation
