Brand Name : LINK-PP
Model Number : 1-1840052-9
Certification : RoHS, Lead-free
Place of Origin : CHINA
MOQ : 10pcs
Price : 20% off
Payment Terms : D/P, T/T, Western Union, MoneyGram
Supply Ability : 500K/Month
Delivery Time : In Stock & Ready to Ship
Packaging Details : Tape & Reel
Part Number : 1-1840052-9
Connector Type : RJ45 with Integrated Magnetics
Ethernet Speed : 1000BASE-T
LED Indicators : Yes
Orientation : Right Angle (Horizontal)
Shielding : Shielded RJ45 Jack
The 1-1840052-9 is a 2x1 integrated connector module (ICM) designed for Gigabit Ethernet applications, with LED indicators for network status monitoring. This compact, high-performance module integrates magnetics, RJ45 connectors, and signal conditioning into a single package, simplifying PCB design for networking equipment.
Parameter | Specification |
---|---|
Model | 1-1840052-9 |
Configuration | 2x1 (Dual-Port) |
Data Rate | 10/100/1000 Mbps (Gigabit) |
LED Indicators | Integrated (Link/Activity) |
Mounting Style | Through Hole Mount |
Connector Type | RJ45 with Integrated Magnetics |
Standards Compliance | IEEE 802.3ab (1000Base-T) |
Isolation Voltage | ≥1500Vrms |
Operating Temperature | 0°C to +70°C |
Current Rating | 1.5A per port (typical) |
Contact Material | Gold-plated copper alloy |
Flammability Rating | UL94 V-0 |
![]() |

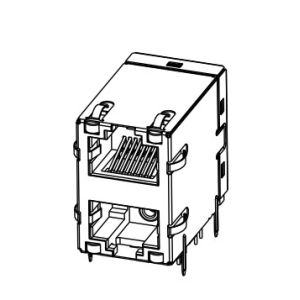

1-1840052-9 2X1 RJ45 Magjacks Integrated Connector Module With LED Images |
