74981102100 Vertical Single Port RJ45 Connector 10/100/1000BASE-T

LINK-PP INT'L TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

74981102100 Vertical Single Port RJ45 Connector 10/100/1000BASE-T

  • 1
  • 2

Brand Name : LINK-PP

Model Number : 74981102100

Certification : RoHS Compliant

Place of Origin : Guangdong, China

MOQ : 10pcs

Price : $1.9

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 5000K PCS/Month

Delivery Time : Ship Today

Packaging Details : Tape & Reel

Part Number : 74981102100

Series : Through Hole Reflow RJ45

PHY Chip Mode : Current

LED : green-yellow

Shield Tabs : NO

Tab Position : Vertical

Contact Now

Applications of 74981102100 RJ45 Vertical Connector

  • Ethernet switches, routers, and hubs
  • IP surveillance cameras and NVR systems
  • VoIP phones and smart gateways
  • Industrial automation (PLC, HMI, sensors)
  • Set-top boxes and smart TVs
  • IoT devices and embedded systems

Key Specifications:

Product Type RJ45 Connector with Magnetics
Part Number 74981102100
Mounting Through-Hole Reflow
Number of Ports 1
Status in stock
Data rate 10/100/1000BASE-T
PoE non-PoE
Tab Vertical
Improved CMRR No
Operating Temperature -40 °C up to +85 °C
LED(left-right) green-yellow
Shield Tabs NO
RoHS Compliance RoHS Compliant
Packaging Reel

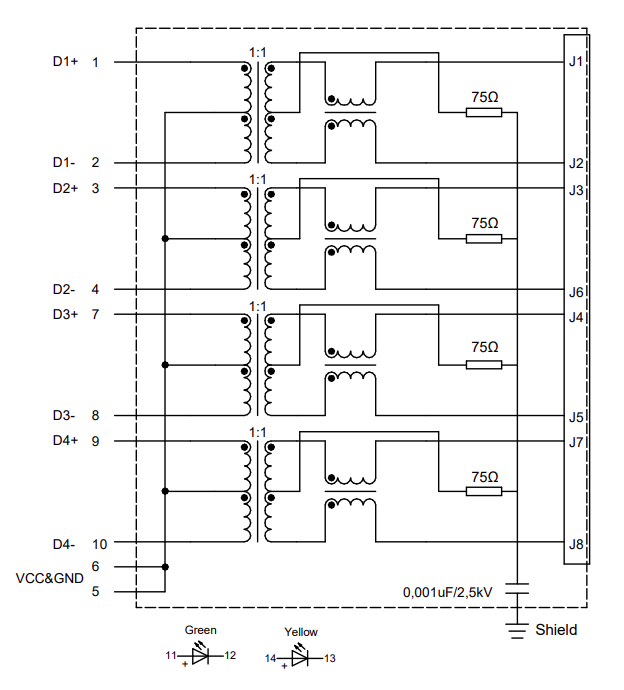

74981102100 THR RJ45 Jack Datasheet:

74981102100 Vertical Single Port RJ45 Connector 10/100/1000BASE-T

74981102100 Vertical Single Port RJ45 Connector 10/100/1000BASE-T
