SMT Transformer 74942402 With 6400V DC Reinforced Insulation Voltage

Model Number : 74942402

Brand Name : LINK-PP

Certification : UL,RoHS,REACH,ISO

Place of Origin : Guangdong, China

MOQ : 10pcs

Price : $0.7-$1.8

Payment Terms : TT, NET30/60/90 Days

Supply Ability : 500K/Month

Delivery Time : 2 weeks

Packaging Details : Reel in Carton

Product Type : BMS Transformer

Operating Temperature : -40 up to +125 °C

Common Mode Rejection Ratio : -50 dB typ. @1-100 MHz

Creepage Distance : 15mm

Size : L 12.5 x W 28 x H 73.3mm

Application : Battery Management Systems

Contact Now


Features of 74942402 1 Port LAN Transformer:

  • Reinforced Insulation Voltage 6400(DC) 1Min From Pri to Sec
  • Common Mode Rejection Ratio CMRR 1-100 MHz -50 dB typ.
  • Construction: reinforced insulation
  • Up to 1500 VDC working voltage
  • Integrated filter chokes for common-mode interference suppression
  • Supports serial daisy chain ISO SPI and SPI
  • Available in different footprints
  • Versions with a low profile
  • Operating temperature: -40 °C up to +125 °C

74942402 BMS Transformer Electrical Properties:

Parameter Test Condition Value Unit Tol.
Inductance 100 kHz/ 100mV 150 µH max.
Inductance 100 kHz/ 100mV 450 µH min.
Insertion Loss 4 MHz -0.25 dB typ.
Return Loss 4 MHz @ 100 Ω -20 dB typ.
Common Mode Rejection Ratio 1–100 MHz -50 dB typ.
Working Voltage 1500 V(DC) dB
Insulation Test Voltage 1 min 6400 V(DC) min.
Leakage Inductance 100 kHz/ 100mV 0.6 µH max.
Clearance Distance 50–150MHz 14 mm min.
Creepage Distance 15 mm min.
DC Resistance 1 transformer side 450 mΩ max.
DC Resistance 2 CMC side 800 mΩ max.

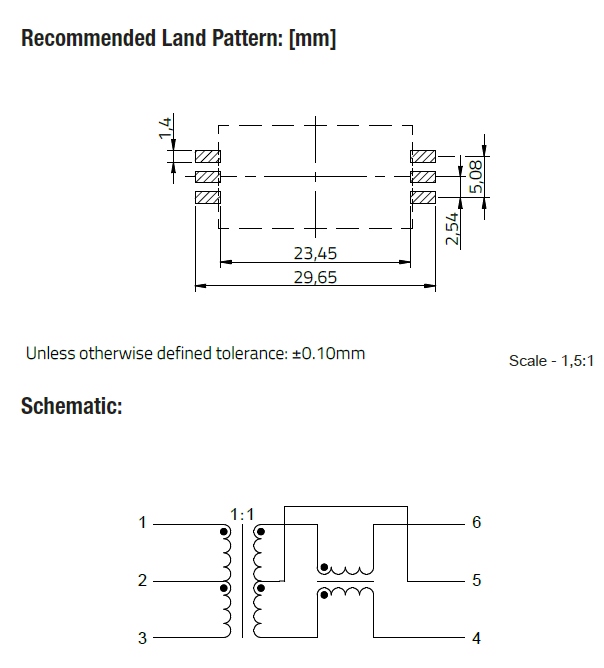

74942402 Datasheet:

SMT Transformer 74942402 With 6400V DC Reinforced Insulation Voltage
