74941301 SMD BMS SMT Transformer 4300V DC Isolation From Pri to Sec

Name: 74941301 SMD BMS SMT Transformer 4300V DC Isolation From Pri to Sec
Brand: LINK-PP
Price: 0.7 USD

74941301 SMD BMS SMT Transformer 4300V DC Isolation From Pri to Sec Manufactures

Model Number : 74941301

Brand Name : LINK-PP

Certification : UL,ROHS,REACH,ISO

Place of Origin : HuiZhou, China

MOQ : 100pcs

Price : $0.7-$1.5

Payment Terms : D/A, Western Union, MoneyGram

Supply Ability : 6KK/Month

Delivery Time : 1-2 Weeks

Packaging Details : Tape & Reel

Product : SMT Transformer

Part Number : 74941301

PINs : 6

Pair : Single

Operating Temperature : -40°C to +125 °C

Mounting Type : Surface Mount

Contact Now

74941301 BMS Transformer Description:

The 74941301 single-port SMT Transformer with an insulation test voltage of 4300V DC and a working voltage of 1000V DC. Its creepage distance is 5 mm, and it measures 7.6 mm in length, 9.5 mm in width, and 5.5 mm in height. It is suitable for energy storage systems, UPS, e - bikes, e - e-scooters, and the isolation of industrial interfaces.

General Information:

Product Series	WE-BMS Transformer for Battery Management Systems
Part Number	74941301
Status	Active
Turns Ratio - Primary: Secondary	1CT:1
PINs	6 PINs
Number of Ports	1 Port
Insulation Test Voltage	4300V DC
Working Voltage	1000V DC
Creepage Distance	5 mm
Length	7.6 mm
Width	9.5 mm
Height	5.5 mm

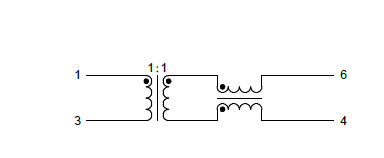

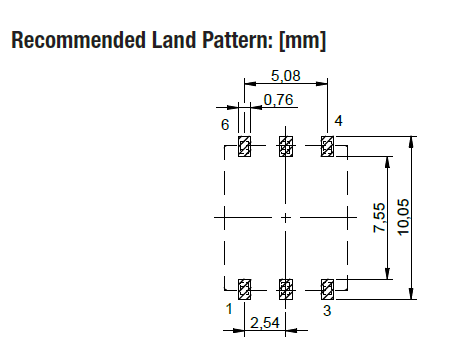

74941301 6 PINs Transformer-Datasheet:

74941301 SMD BMS SMT Transformer 4300V DC Isolation From Pri to Sec
