Name: 12PINS BMS Transformer 74942300 With 4300V DC Insulation Test Voltage
Brand: LINK-PP
Price: 0.9 USD

Model Number : 74942300

Brand Name : LINK-PP

Certification : RoHS Compliant

Place of Origin : HuiZhou, China

MOQ : 100pcs

Price : $0.9-$2.3

Payment Terms : D/A, T/T, Western Union, MoneyGram

Supply Ability : 5KK/Month

Delivery Time : 2-3 weeks

Packaging Details : Tape and Reel

Number of Ports : 2

Pins : 12

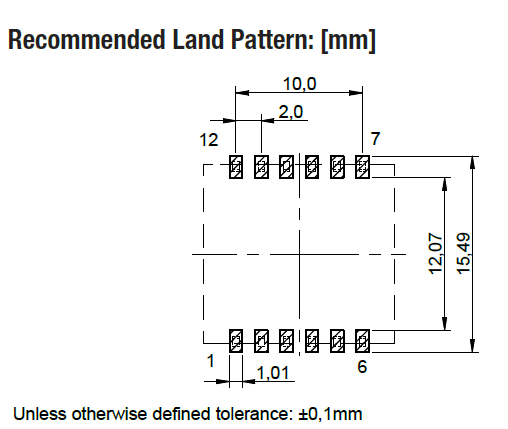

Size : 15,1x14.7x4.75mm

Working Voltage : 1000V DC

Reinforced Isolation : 4300V DC

OEM/ODM : Support

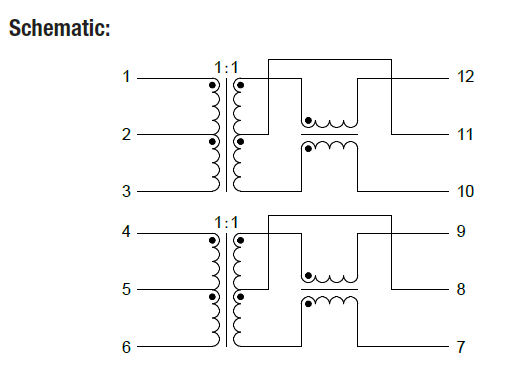

Turns Ratio : 1CT:1CT

Operating Temperature : -40 up to +125 °C

Contact Now

Property	Test Conditions	Value	Unit	Tolerance
Inductance (L)	100 kHz / 100 mV	150-450	μH	min.-max.
Insertion Loss (IL)	4 MHz	-0.25	dB	max.
Return Loss (RL)	4 MHz @ 100 Ω	-20	dB	min.
Common Mode Rejection Ratio (CMRR1)	1-10 MHz	-35	dB	min.
Common Mode Rejection Ratio (CMRR1)	10-1000 MHz	-20	dB	min.
Working Voltage	-	1000	V (DC)	-
Insulation Test Voltage (DC)	$V_{T 1}$ , 1 min	4300	V (DC)	min.
Insulation Test Voltage (AC)	$V_{T 2}$ , 1 min	3100	V (AC)	min.
Leakage Inductance ( $L_{5}$ )	100 kHz / 100 mV	0.5	μH	max.
Insulation Resistance ( $R_{S O}$ )	-	400	MΩ	min.
Clearance Distance ( $C l$ )	-	10	mm	min.
Creepage Distance ( $C r$ )	-	10	mm	min.
DC Resistance 1 (Transformer Side)	$R_{D C}$	450	mΩ	max.
DC Resistance 2 (CMC Side)	$R_{D C}$	850	mΩ	max.

Key Notes:

Inductance range represents minimum (150 μH) and maximum (450 μH) values
All insulation test voltages are the minimum required values
Resistance values differ between the transformer side (450 mΩ max) and the common mode choke side (850 mΩ max)
