1-1840052-1 Stacked Magjacks 2X1 Port Gigabit Shield With LED

Product Categories

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 118400521 Stacked Magjacks 2X1 Port Gigabit Shield With LED
Brand: LINK-PP
Price: 1 USD

Model Number : 1-1840052-1

Brand Name : LINK-PP

Certification : UL,ISO,ROHS,REACH

Place of Origin : Guangdong, China

MOQ : 100pcs

Price : Negotiable

Payment Terms : TT, NET30/60/90 Days

Supply Ability : 6000000/Month

Delivery Time : 3-7 days

Packaging Details : Tray

Number of Ports : 2X1

Speed : 1000BASE-T

LED Color : Green/Green

Operating Temperature : 0 ~ +70ºC

EMI Tabs : With

Mounting Type : Through Hole

Contact Now

Plastic Housing: Black, thermoplastic flammability rating UL 94V-0.
Shield: Brass, preplated with 0.76mm minimum semi-bright nickel. Post-plated with 2.54mm minimum solder or pure tin on solder tails.
Contacts: Phosphor bronze, 1.27mm gold overall nickel. Underplate with select 1.27mm min gold on wipe area, with min gold over 0.76mm min palladium-nickel at mating interface and 2.54mm min matte tin on solder tails.
Undiffused Epoxy Lens: The carbon steel lead frame tails of the LED are plated with 2.03mm minimum silver over 1.02mm minimum nickel underplate over 1.02mm minimum copper underplate. They are then plated with 2.54mm minimum matte tin and/or sac solder dip or pure tin solder dip.

Parameter	Details
Application	10/100/1000 BASE-T
Impedance	100 ohms

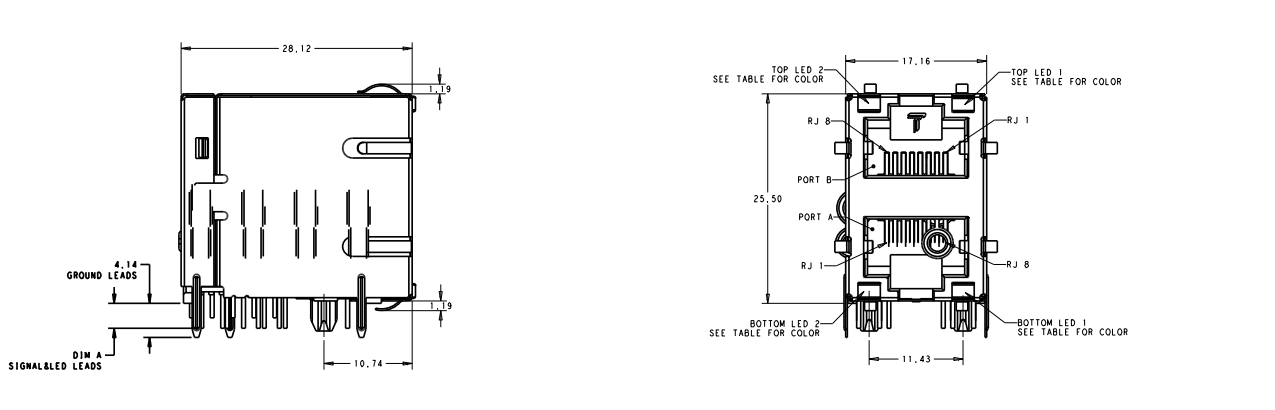

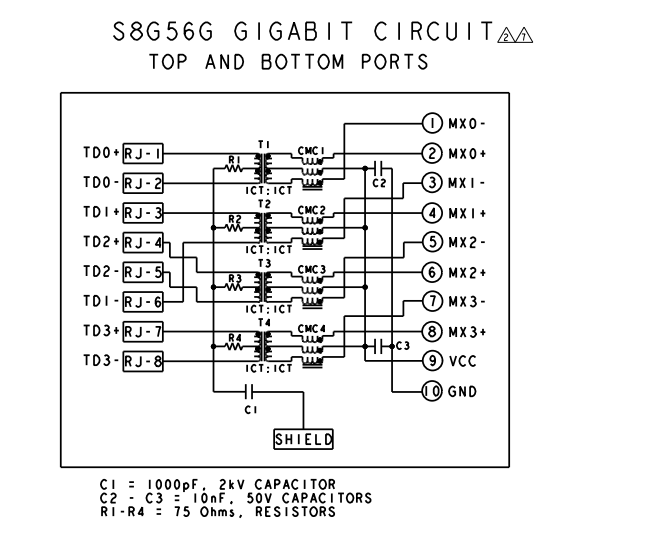

Turns Ratio (Chip: Cable)	1:1, all four pairs
Open Circuit Inductance (OCL)	Min 350μH @100kHz, 0.1VRMS, 8mADC bias from 0°C to 70°C, all four pairs
All Four Pairs Bi-Directional	Performance @ 25°C
Insertion Loss (IL)	Max -1.1dB from 0.5MHz to 100MHz
Return Loss (RL)	Min 18dB from 0.5MHz to 40MHz; Min 12 - 20LOG(f/80) dB from 40.1MHz to 100MHz
Crosstalk Attenuation	Min 35dB from 0.5MHz to 40MHz; Min 33 - 20LOG(f/50) dB from 40.1MHz to 100MHz
Common Mode Rejection Ratio (CMRR)	Min 30dB from 0.5 MHz to 100 MHz
Isolation Voltage	2250VAC (Max) for 60 seconds with a rise time of 500V/sec and all ports connected
Operating Temp	From 0°C to +70°C

1-1840052-1 Stacked Magjacks 2X1 Port Gigabit Shield With LED
