615004138421 Side Entry RJ45 Jack Without LED THT Mounting

Name: 615004138421 Side Entry RJ45 Jack Without LED THT Mounting
Brand: LINK-PP
Price: 1 USD

Brand Name : LINK-PP

Model Number : 615004138421

Certification : UL,ISO,ROHS,REACH

Place of Origin : CHINA

MOQ : Free Samples Available

Price : Negotiable

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4200K-PCS/Month

Delivery Time : Stock

Packaging Details : Tray

Number of Pins : 6P4C

LEDs : Without LED

EMI Finger : NO

Shielding : Unshielded

Number of Ports : Single Port

Mount : THT

Operating Temperature : -40 °C up to +85 °C

Durability : 500 Mating cycles

Contact Now

615004138421 6P4C Jack Technical Specifications:

Product Series	RJ45 without Magnetics
Part Number	615004138421
Shielding	Unshielded
Connector Type	Modular Jack (6P4C)
Connector Orientation	Right Angle
LED/Light Pipes	Without
Port Configuration	1x1 (Port)
Number of Positions / Loaded Contacts (per Port)	6P4C
Magnetics	Without Magnetics
LAN Category	CAT 3
Operating Temperature Range	-40°C to +85°C
Connector Mounting	Through-Hole Mount

615004138421 Materials:

1. Insulator Material: PBT

A durable thermoplastic material known for its excellent mechanical strength, heat resistance, and electrical insulation properties.

2. Insulator Flammability Rating: UL94 V-0

Indicates high flame-retardant performance, ensuring safety by self-extinguishing flames within 10 seconds without dripping.

3. Insulator Color: Black

Provides a sleek appearance and matches standard industrial color requirements.

4. Contact Material: Copper Alloy

Offers superior electrical conductivity and mechanical robustness for reliable signal transmission.

5. Contact Plating: Gold

Gold plating ensures excellent corrosion resistance, low contact resistance, and enhanced durability in harsh environments.

6. Contact Type: Stamped

Stamped contacts allow for precise, consistent manufacturing and are cost-effective for high-volume production.

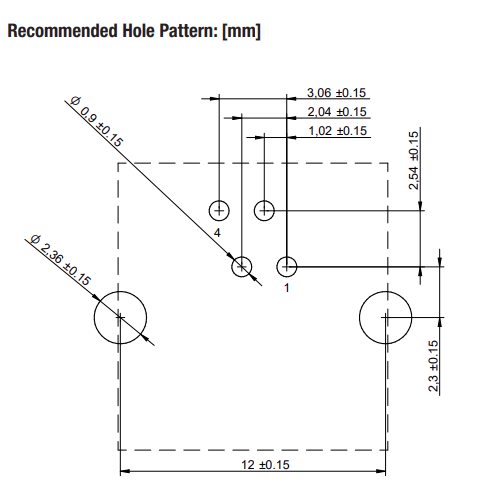

615004138421 Datasheet - Recommended Hole Pattern:
