6P6C 615006141121 Wave Solderable Modular Jack Tab Down

Name: 6P6C 615006141121 Wave Solderable Modular Jack Tab Down
Brand: LINK-PP
Price: 0.3 USD

6P6C 615006141121 Wave Solderable Modular Jack Tab Down Manufactures

Brand Name : LINK-PP

Model Number : 615006141121

Certification : RoHS Compliant

Place of Origin : Guangdong, China

MOQ : 50pcs

Price : $0.3-$0.9

Payment Terms : D/A, D/P, Western Union, MoneyGram

Supply Ability : 5KK/Month

Delivery Time : 3-7 days

Packaging Details : Tray

Connector Type : Female Modular Jack

Part Number : 615006141121

Category Specification Connector Type Modular Jack (Female) Configuration : 1x1 (Single Port)

Contacts : 6 Position, 6 Contact (6P6C)

Mounting : Through Hole, Right Angle

Termination : Solder

Shielding : Unshielded

Operating Temperature : -40 °C up to +85 °C

Orientation : Tab Down

Flammability Rating : UL 94 V-0

Contact Now

Why Choose 615006141121 Through Hole 6P6C Connector?

✔ Wave Soldering Optimized – Ideal for high-volume PCB assembly
✔ Universal Compatibility – Works with RJ11 (6P4C) and RJ12 (6P6C) plugs
✔ Robust Construction – Gold-plated contacts resist corrosion
✔ Space-Efficient – Right-angle mounting saves PCB space
✔ Safety Certified – Meets UL 94 V-0 flammability standards

615006141121 6P6C Modular Jack Technical Specifications

Category	Specification	Notes
Product Type	6P6C Modular Jack	Female connector
Configuration	1 Port (1x1)	Single-port design
Contact Arrangement	6 Position 6 Contact (6P6C)	Compatible with the RJ12 standard
Mounting Type	Through Hole	Right-angle orientation
Termination Method	Solder Cup	Wave solder compatible
Current Rating	1.5A	Max continuous current
Voltage Rating	120V AC	Rated voltage
Contact Material	Copper Alloy	Gold plated contacts
Contact Resistance	≤20mΩ	Initial value
Insulation Resistance	≥500MΩ	At 500VDC
Dielectric Strength	1000V AC for 1 minute	Between contacts and shell
Operating Temperature	-40°C to +85°C	Storage temperature same
Flammability Rating	UL 94 V-0	Flame retardant
Housing Material	High-temperature thermoplastic	Black color
Insertion Cycles	≥500 cycles	Minimum durability
Contact Plating	Gold over nickel	0.76μm min gold thickness
Packaging	Tray	Standard packaging

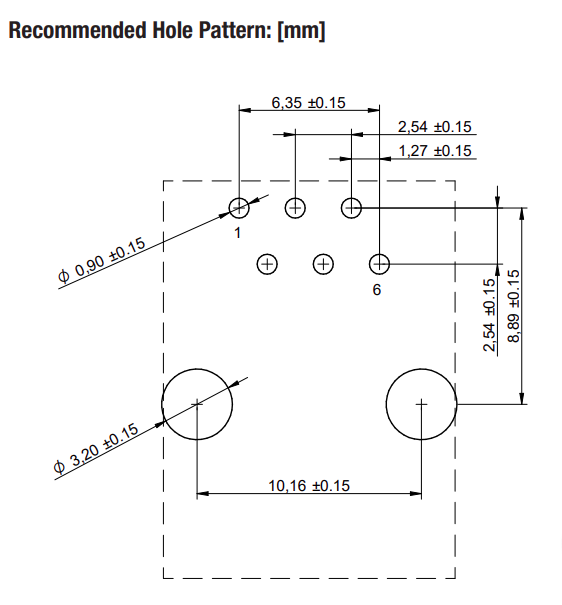

615006141121 Datasheet:

Typical Applications of 615006141121 Female Modular Jack

Telephone Systems (RJ11/RJ12)
Analog Modems & Fax Machines
POS Terminals & Kiosks
Industrial Control Panels
Legacy Networking Equipment
