HN18101CG Lan Transformer 100/1000 Base - T Ethernet Magnetics LP81801NL

Name: HN18101CG Lan Transformer 1001000 Base T Ethernet Magnetics LP81801NL
Brand: LINK-PP
Price: 0.06 USD

HN18101CG Lan Transformer 100/1000 Base - T Ethernet Magnetics LP81801NL Manufactures

Brand Name : LINK-PP

Model Number : HN18101CG

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

part Number : HN18101CG

Cross&Datasheet : LP81801NL

Apllication : 100/1000Base-T

Turns Ratio : 1 : 1

Cores : 8

Temperature : 0 TO 70℃

Contact Now

HN18101CG 100/1000 Base-T Ethernet Magnetics Lan Transformer Factory LP81801NL

Quick Details

1000BASE-T Single Port Lan Transformer
Ethernet Magnetics Transformer Factory LP81801NL
18 Pin THT Equivalent to HN18101CG

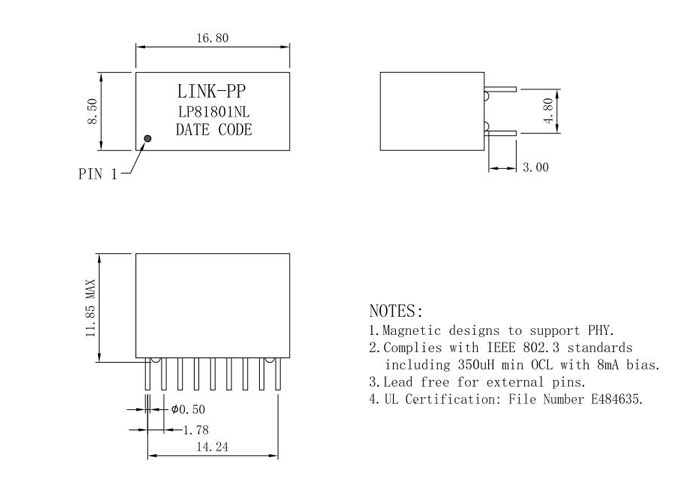

Size&measurement : 16.80X8.50X11.85mm

Competitor Cross Reference

Pin to pin HN18101CG
Factory PN	LP81801NL
Manufacturer Series	HN18101CG
Manufacturer	LINK-PP
Cross References	Equivalent to HN18101CG
Series	Transformer
L/T	Stock or 4-5 weeks
Description	XFMR 1000BASE-T SINGLE PORT 1:1 THT
Documents Available	PDF/3D/ISG/Stp/Step/Datasheet
mode of payment	T/T, Western Union, MoneyGram
PIN	18
CORES	8
speed	100/1000 Base-T
Mfr Package Description	ROHS COMPLIANT
REACH Compliant	Yes
EU RoHS Compliant	Yes
China RoHS Compliant	Yes
Status	Active
Transformer Type	DATACOM TRANSFORMER
Application	GENERAL PURPOSE
Isolation Voltage	1500.0 V
Mounting Feature	THT
Number of Functions	1
Primary Inductance	350
Terminal Finish	TIN
Samples	Available 5 pcs
Turns Ratio (Np:Ns)	1:1; 1:1

Specification

HN18101CG Lan Transformer 100/1000 Base - T Ethernet Magnetics LP81801NL

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

20 years production experience,

1100 staff,

100% test

Flexible delivery time

Wish To Be Your Best Supplier and Supporter In Your Networking Solutions

------------- LINK-PP Sales & Support Team

----------------------Welcome To Your Enquiry. We Are Available, Always and Sincerely-------------------

Product Tags:

10/100base-t magnetics

gigabit magnetics transformer

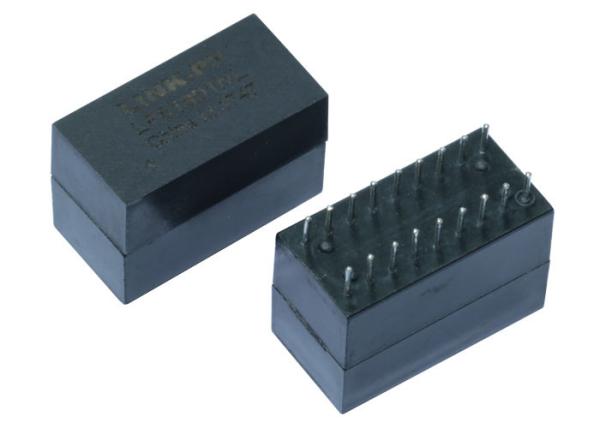

HN18101CG Lan Transformer 100/1000 Base - T Ethernet Magnetics LP81801NL Images
