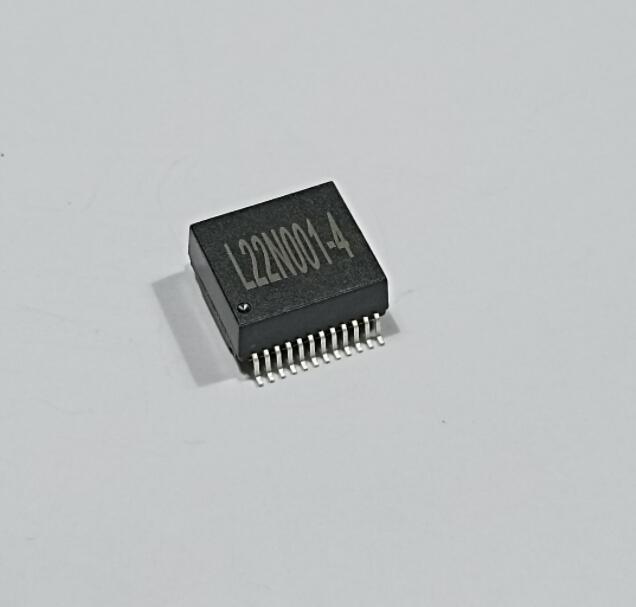

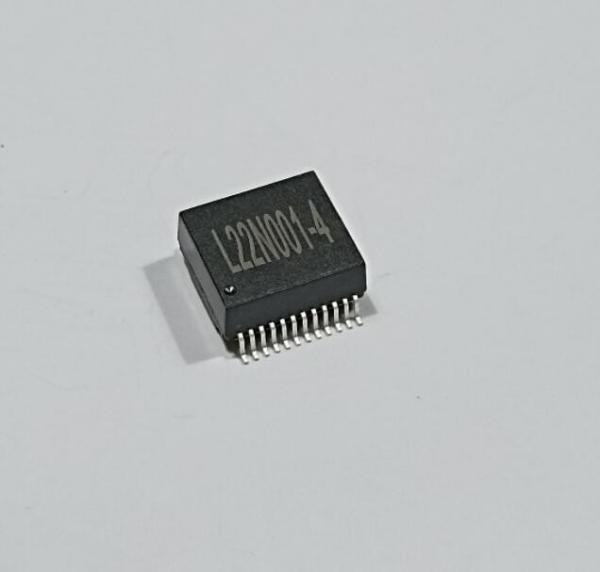

L22N001-4 10G Base - T Single Port Lan Transformer POE 100W

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPxxxxxx

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : L22N001-4

Equivalent : LPxxxxxx

Speed : 10G Base-T

Transformer Type : Isolation and Data Interface

Operating T-40~+105℃emperature : 0~+70℃

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

L22N001-4 10G Base –T Single Port Lan Transformer POE 100W

Item Part Number L22N001-4
LINK-PP Part Number LPxxxxxx
Manufacturer LINK-PP
Speed 10G BASE-T
Number of Ports Single Port
PIN number 24 PIN
Cores per Port 8
POE PoE_90W
Type SMD
Size 13.6 x 15 x 6.25
Pin Pitch 0.99
Circuits 3C+T
Operating Temperature 0~+70℃
CMC PHY

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

L22N001-4 10G Base - T Single Port Lan Transformer POE 100W

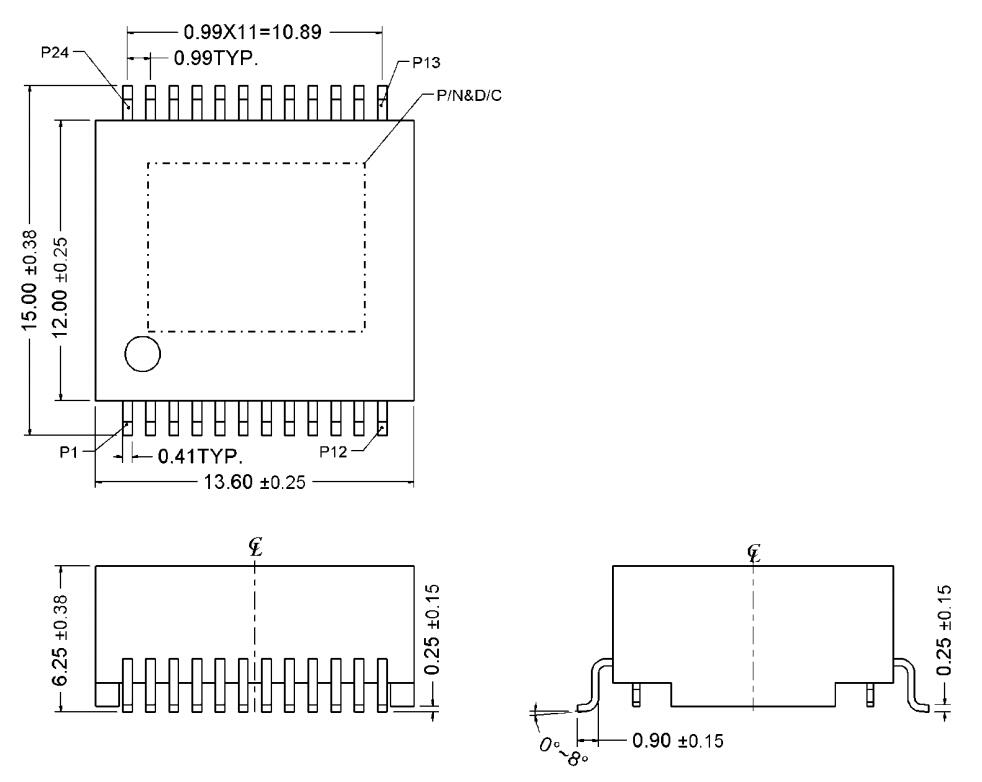

L22N001-4 10G Base –T Single Port Lan Transformer POE 100W Product Dimension:

L22N001-4 10G Base - T Single Port Lan Transformer POE 100W

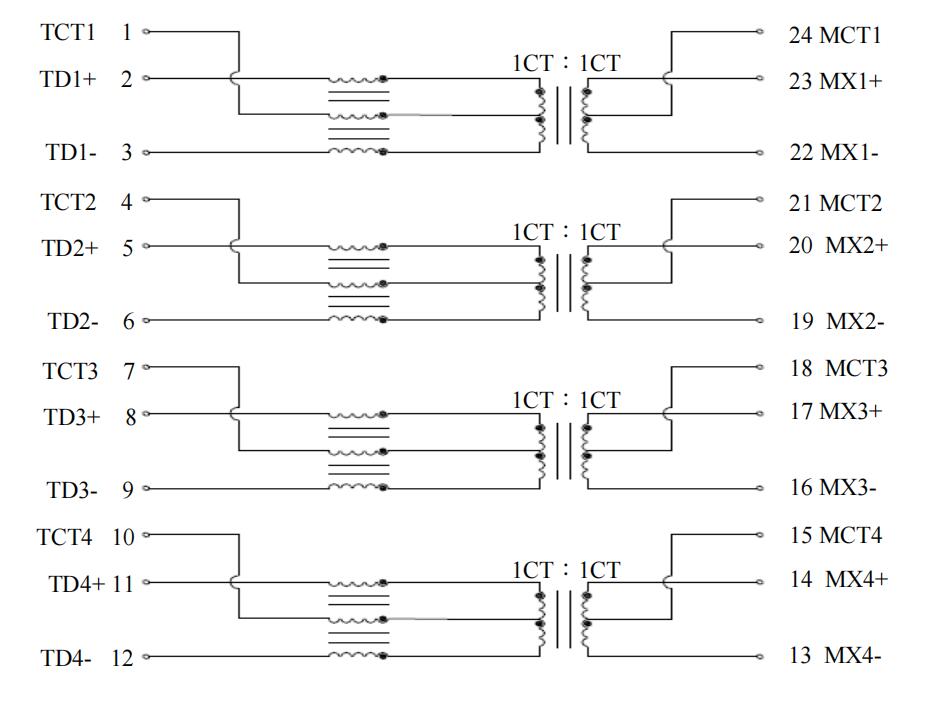

L22N001-4 10G Base –T Single Port Lan Transformer ELECTRICAL CHARACTERISTICS Schematic:

L22N001-4 10G Base - T Single Port Lan Transformer POE 100W

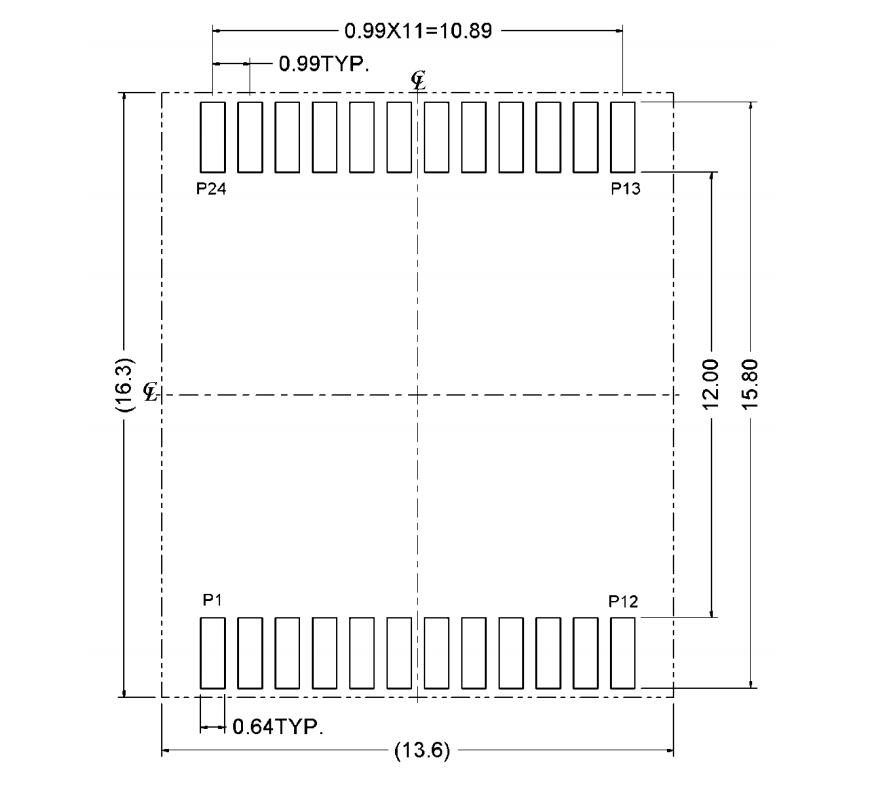

L22N001-4 Lan Transformer Recommened PCB Layout (Unit mm)
L22N001-4 10G Base - T Single Port Lan Transformer POE 100W

L22N001-4 SPECIFICATION:

Designed for Ethernet 10G BASE-T,full Single port applications.
Supports 4 pairs of category 5 UTP cable.
Cable interface for isol ation and low common mode emissions.
Design to meet IEEE 802.3 with 1000mA balanced current.
Compliance with ROHS requirements.
Operating and Storage Temperature
Operating Temperature: 0°C to +70C
Storage Temperature :
-25°C to +1059C

L22N001-4 Similar Part Number :


L22H018-0 L22H025-0 L22H027-0
L22H037-0 L22H043-0 L22N001-0
L22N001-2 L22N001-4 L22N003-0
L22N003-3 L22N004-3 L22N005-0
L22N006-0 L22N010-0 L22N013-0
