L22N005-0 Single Port 10G Base - T Ethernet Magnetic Transformer Modules

Product Categories
LINK-PP INT'L TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

L22N005-0 Single Port 10G Base - T Ethernet Magnetic Transformer Modules

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPxxxxxx

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : L22N005-0

Equivalent : LPxxxxxx

Speed : 10G Base-T

Transformer Type : Isolation and Data Interface

Operating T-40~+105℃emperature : 0~+70℃

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

L22N005-0 Single Port 10G Base –T Ethernet Magnetic Transformer Modules

Item Part Number L22N005-0
LINK-PP Part Number LPxxxxxx
Manufacturer LINK-PP
Speed 10G BASE-T
Number of Ports Single Port
PIN number 24 PIN
Cores per Port 8
POE Non PoE
Type SMD
Size 13.6 x 15 x 6.25
Pin Pitch 0.99
Circuits 3C+T
Operating Temperature 0~+70℃
CMC Cable

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

L22N005-0 SPECIFICATION:

Designed for Ethernet 10G Base-T,full Single port applications.
Cable interface for isolation and low common mode emissions.
Compliant with EEE 802 3an Specification.
Compliant with RoHS& Halogen Free requirements.
Operating and Storage Temperature
Operating Temperature: 0°C to +70°C
Storage Temperature : -25°C to +105°C

L22N005-0 Single Port 10G Base - T Ethernet Magnetic Transformer Modules

L22N005-0 Single Port 10G Transformer Modules ELECTRICAL CHARACTERISTICS Schematic:

L22N005-0 Single Port 10G Base - T Ethernet Magnetic Transformer Modules

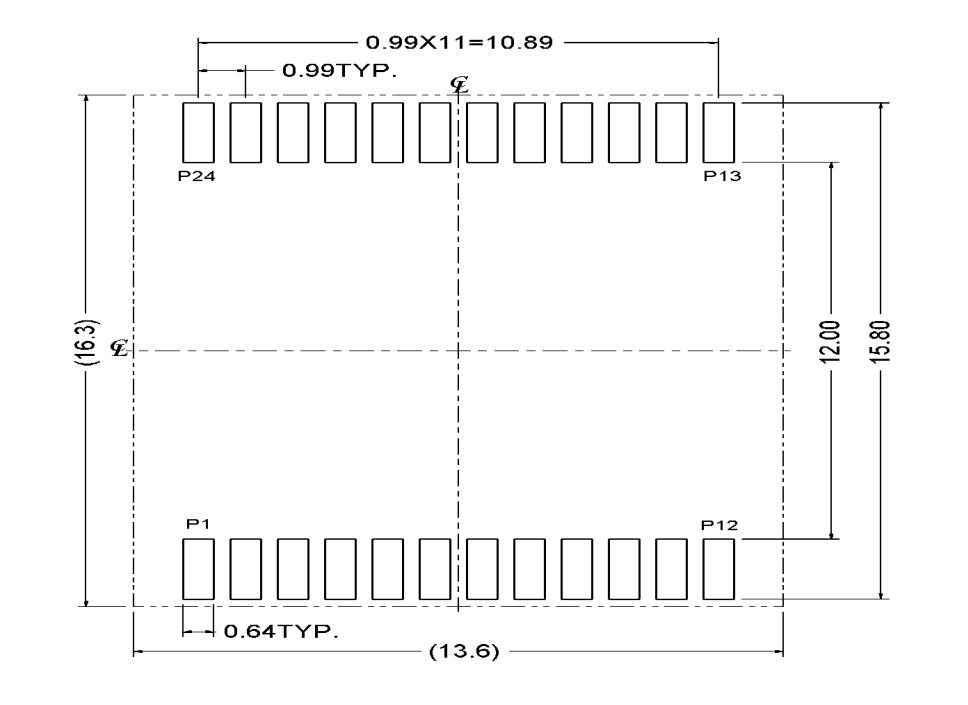

L22N005-0 Magnetic Transformer Recommened PCB Layout (Unit mm)
L22N005-0 Single Port 10G Base - T Ethernet Magnetic Transformer Modules

L22N005-0 Similar Part Number :

L22H018-0 L22H025-0 L22H027-0
L22H037-0 L22H043-0 L22N001-0
L22N001-2 L22N001-4 L22N003-0
L22N003-3 L22N004-3 L22N005-0
L22N006-0 L22N010-0 L22N013-0


Product Tags:

L22N005-0



L22N005-0 Ethernet Magnetic Transformer



10G Ethernet Magnetic Transformer Modules


L22N005-0 Single Port 10G Base - T Ethernet Magnetic Transformer Modules Manufactures

L22N005-0 Single Port 10G Base - T Ethernet Magnetic Transformer Modules Images
