UDE L22T005-4 PoE_90W Single Port LAN Transformer 5G Base –T
| UDE Part Number | L22T005-4 |
| LINK-PP Part Number | LPxxxxxx |
| Manufacturer | LINK-PP |
| Speed | 5G BASE-T |
| Number of Ports | Single Port |
| PIN number | 24 PIN |
| Cores per Port | 8 |
| POE | PoE_90W |
| Type | SMD |
| Size | 18.1 x 16 x 6.2 |
| Pin Pitch | 1.27 |
| Circuits | 3C+T |
| Operating Temperature | -40~+85℃ |
| CMC | PHY |
| You may be interesting in below considerate supports: |
| Datasheet | Request by email to | contact us |
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping |
| Company Name | |
| Delivery Address | |
| Telephone Number | |
| Contact Person | |
| UPS/DHL/Fedex/TNT A.C | (If available) |
| Trial Production | U/P(USD) | $0.06-$3.2 | We can ship out parts directly to your warehouse/door to door |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Mass Production | U/P(USD) | Stock | |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Lifecycel | More than 20 years | You can use our parts for long term consideration |
| Reject Ratio | Zero Defective (100% Tested) |
| Special Services | Accept customized service | Accept revised designing |
Now you can contact us instantly
|
L22T005-4 FEATURES:
Designed for Ethernet 5G Base-T,full Single port applications.
Supports 4 pairs of category 6 or greater cable.
Cable interface for isolation and low common mode emissions.
Designed to meet IEEE 802.3bt type4 with 1000mA balanced current.
Compliant with RoHS&Halogen Free requirements.
Operating and Storage Temperature
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +85°C
Packing Information
400 pcs finished goods per reel
3 reels( 1200 pcs finished goods) per inner box
2 Inner boxes(2400 pcs finished goods) per master carton

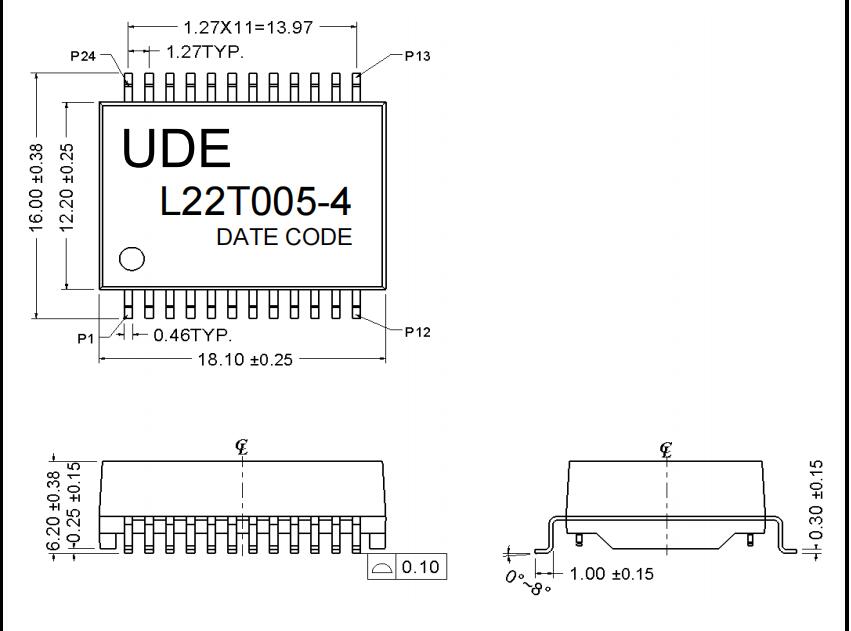

UDE L22T005-4 PoE_90W Single Port LAN Transformer Product Dimension:

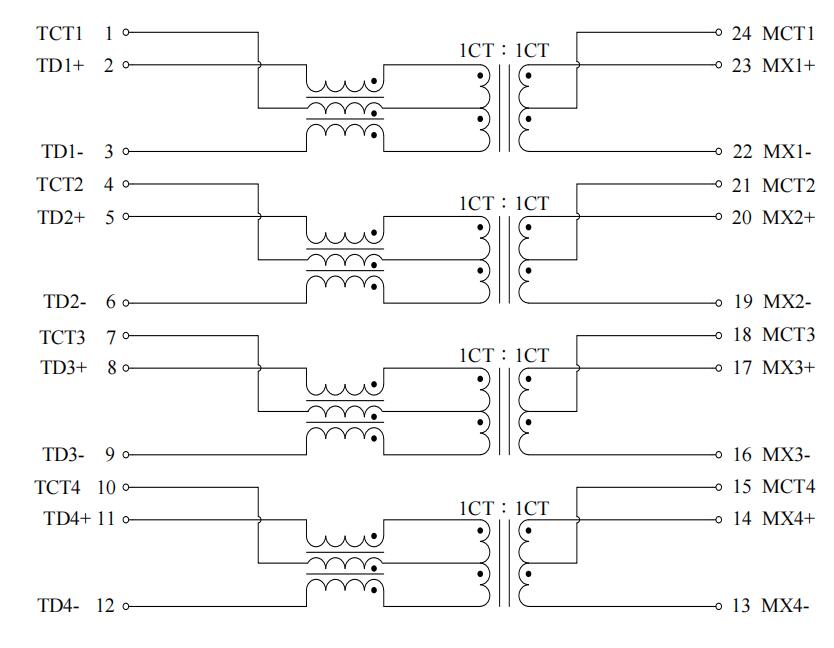

L22T005-4 PoE_90W Single Port LAN Transformer 5G Base –T ELECTRICAL CHARACTERISTICS Schematic:

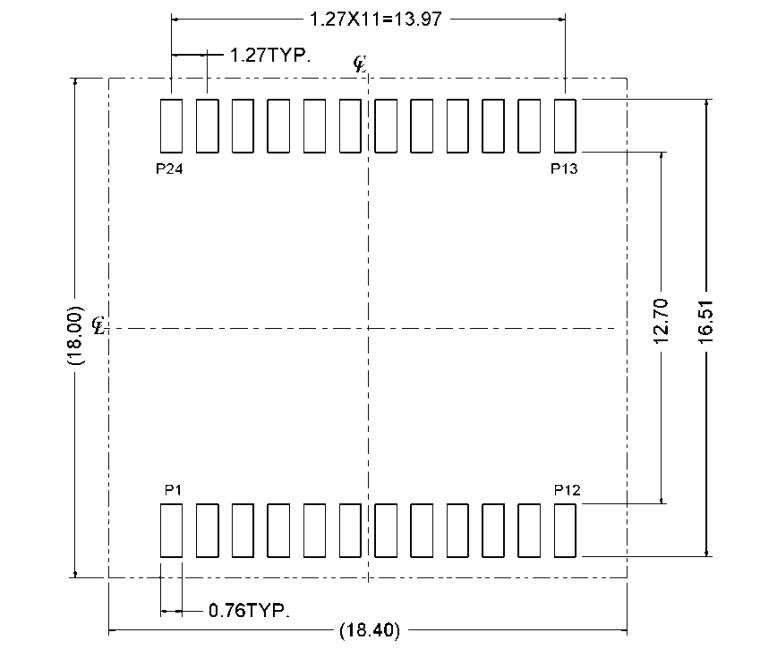

UDE L22T005-4 Recommened PCB Layout (Unit mm)
UDE L22T005-4 Similar Part Number :
| L22N018-0 | L22N021-0 | L22N022-0 |
| L22T001-4 | L22T001-B | L22T001-S |
| L22T002-2 | L22T002-3 | L22T003-0 |
| L22T003-3 | L22T005-0 | L22T005-4 |
| L22T006-0 | L22T006-3 | L22T006-4 |
Product Tags:
|
|

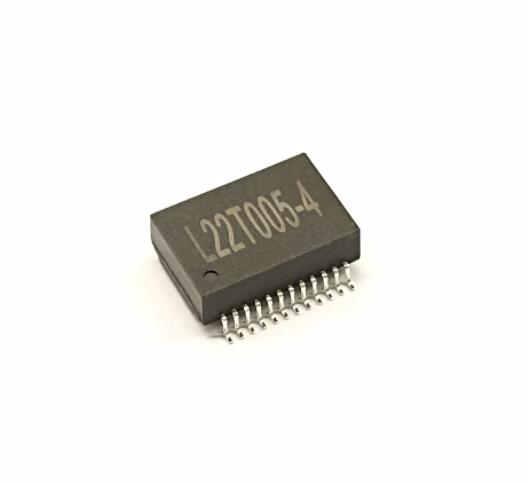

UDE L22T005-4 PoE 90W Single Port LAN Transformer 5G Base - T Images
|
