GST5009M LF 1000 BASE –T MAGNETICS Transformer MODULES Full Duplex LP82426ANL

Name: GST5009M LF 1000 BASE T MAGNETICS Transformer MODULES Full Duplex LP82426ANL
Brand: LINK-PP
Price: 0.06 USD

Brand Name : LINK-PP

Model Number : GST5009M LF

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Specification : G4P209NS-1 LF

Part No : LP82426ANL

Family : 1x 10/100/1000Mbps Ethernet

Mounting : SMD

Position : 24 Pins

Samples : Available

Contact Now

GST5009M LF 1000 BASE –T MAGNETICS Transformer MODULES Full Duplex LP82426ANL

LINK-PP LP82426ANL Gigabit Magnetic Models

Designed for long haul gigabit Ethernet 1000 BASE-T, full duplex applications.
Supports 4 pairs of category 5 UTP cable.

Cross Equivalent to GST5009M Specifications
Cable interface for isolation and low common modeemissions.
Compliant with IEEE 802.3ab standard for 1000 BASE-T.
Comply with RoHS & Halogen Free requirements.
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -40℃ to +85℃.

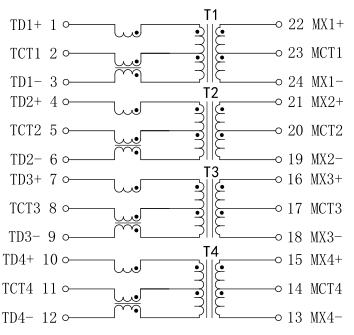

Electrical Specifications @25℃
1.Turn Ratio(TX/RX):
Pri∶Sec=1CT∶1CT ± 5%
2.Inductance OCL: 350uH Min
@100KHz/0.1V 8mA DC BLAS
3.Insertion Loss:
0.3-125MHz:-1.2dB Max
4.Return Loss(@100Ω):
0.3-40MHz:-16dB Min
40-100MHz:-[10-20LOG10(f/80MHz)]dB Min
5.Crosstalk:
1MHz:-50dB Typ
10-100MHz:-[55-22LOG10(f/10MHz)]dB Typ
6.DCMR:
2MHz:-50dB Typ
30-200MHz:-[43-22LOG10(F/30MHz)]dB TyP
7.Isolation Voltage: 1500VAC/0.5mA 3Sec
8.Operating Temperature: -40℃～+85℃.

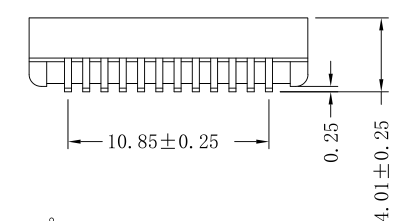

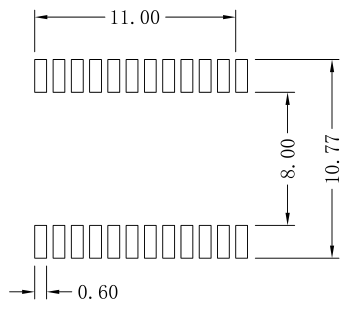

GST5009M LF 1000 BASE –T MAGNETICS Transformer MODULES Full Duplex LP82426ANL

GST5009M LF 1000 BASE –T MAGNETICS Transformer MODULES Full Duplex LP82426ANL
