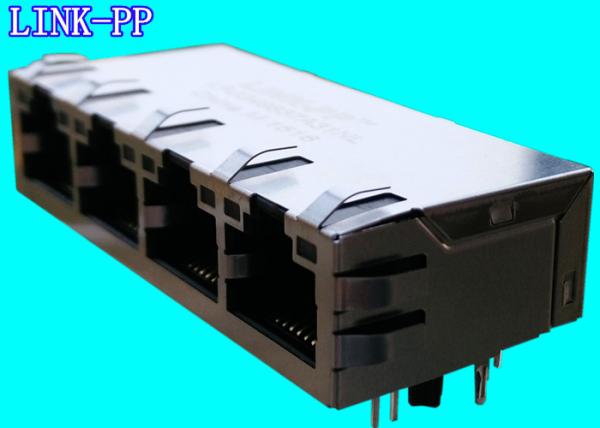

4 Port Gigabit Rj45 Mag Jack LPJG49837A31NL Shield With LEDs Industry Switches

Brand Name : LINK-PP

Model Number : LPJG49837A31NL

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.11-$12

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 208K/Month

Delivery Time : Stock

Packaging Details : Tray

part Number : LPJG49837A31NL

Specification : LPJG49837A31NL

Cross&Datasheet : LPJG49837A31NL

Apllication : Gigabit Four PORT Rj45

Original Munafactuer : LINK-PP

Project Application : NETWORK INTERFACE CARD

Contact Now

4 Port Gigabit Rj45 Mag Jack LPJG49837A31NL Shield With LEDs Industry Switches

Competitor Cross Reference

Part Number

Manufacturer

Part Number

 Manufacturer Description

LPJG49837A31NL

LPJG49837A31NL

 LINK-PP

4 Port Gigabit Rj45 Mag Jack LPJG49837A31NL Shield With LEDs Industry Switches
Series Connector Type Applications Mounting Type
Connectors, Interconnects LINK-PP Rj45 10/100/1000Mbps Thru-Hole
Orientation Termination LED Color Shielding
90° Angle (Right) Solder O&G/O&G Shielded ,EMI-Finger

Features

  • RJ-45 connector integrated with Filter
  • Size same as RJ-45 connector to save PCB board space
  • Reduce EMI radiation, Improve EMI performance
  • High performance for maximum EMI suppression.
  • ISO9001,SGS,UL,CE,REACH
  • Embedded mini PCI express Cellular modemfrom SierraWireless
  • Reduce EMI radiation, Improve EMI performance
  • Certified on all major carrier networks,attractive for network interface cards(NICS)Single port,
  • Multi-port and Stackable configurations (Thru-hole/ SMT)

  • Reduces the number of components to be placed on the board

  • Frees up board space and offers signal protection

  • Noise reduction in the system

  • Improved reliability and optimal system performance

  • Benefits of having shorter signal paths and the reliability gains from systems containing fewer components

  • Helps manufacturers reach their goals of cost reduction

Related Part

LPJG46803ABNL LPJG47305A47NL LPJG47561ADNL LPJG48851AWNL
LPJG46803AENL LPJG47313AFNL LPJG47561AENL LPJG48851NFNL
LPJG46803BHNL LPJG47385AWNL LPJG47561CNL LPJG48851NNL
LPJG46803CNL LPJG47401CNL LPJG4801A4NL LPJG4896F91NL
LPJG46806NNL LPJG47405AANL LPJG4801ABNL LPJG4896F91NL
LPJG46813AENL LPJG47405CNL LPJG4801ABNL LPJG4914ADNL
LPJG46813NNL LPJG47405DNL LPJG4801AGNL LPJG49811AENL
LPJG46814A4NL LPJG47501A4NL LPJG4801BBNL LPJG49837A31NL
LPJG46816AENL LPJG47501AHNL LPJG4801CNL LPJG49837A80NL
LPJG46820AENL-RE LPJG47502-8AHNL LPJG4801DNL LPJG49883AHNL
LPJG46840BENL LPJG47502-8CNL LPJG4801EBNL LPJG4811-7G4NL
LPJG46840CNL LPJG47502-9AHNL LPJG4801G4NL LPJG4811-7H4NL
LPJG46840DNL LPJG47502-9CNL LPJG4801GENL LPJG4811G118NL
LPJG46840NNL LPJG47502CNL LPJG4803AHNL LPJG4811G7NL
LPJG46856AENL LPJG47503AHNL LPJG4803CNL LPJG4813CNL
LPJG46856AENL LPJG47503AHNL LPJG4806CNL LPJG4814G7NL
LPJG46856CNL LPJG47531A47NL LPJG4806EBNL LPJG4816-8CNL
LPJG46860ADNL LPJG47531CNL LPJG4806FBNL LPJG4816CNL
LPJG46892CNL LPJG47531CNL LPJG4807G51NL LPJG4816GENL
LPJG46901A116NL LPJG47537-1CNL LPJG4808A32NL LPJG4820G4NL
LPJG46901AENL LPJG4833G4NL LPJG4810-9NNL LPJG4820NNL
LPJG46901AHNL LPJG4845H27NL LPJG4810NNL LPJG4820NNL
LPJG46901DNL LPJG4852E90NL LPJG4810NNL LPJG4822CNL
LPJG46920NNL LPJG4852E90NL LPJG47010A47NL LPJG4822CNL
LPJG46927A4NL LPJG48819AHNL LPJG47011A101NL LPJG4833G4NL

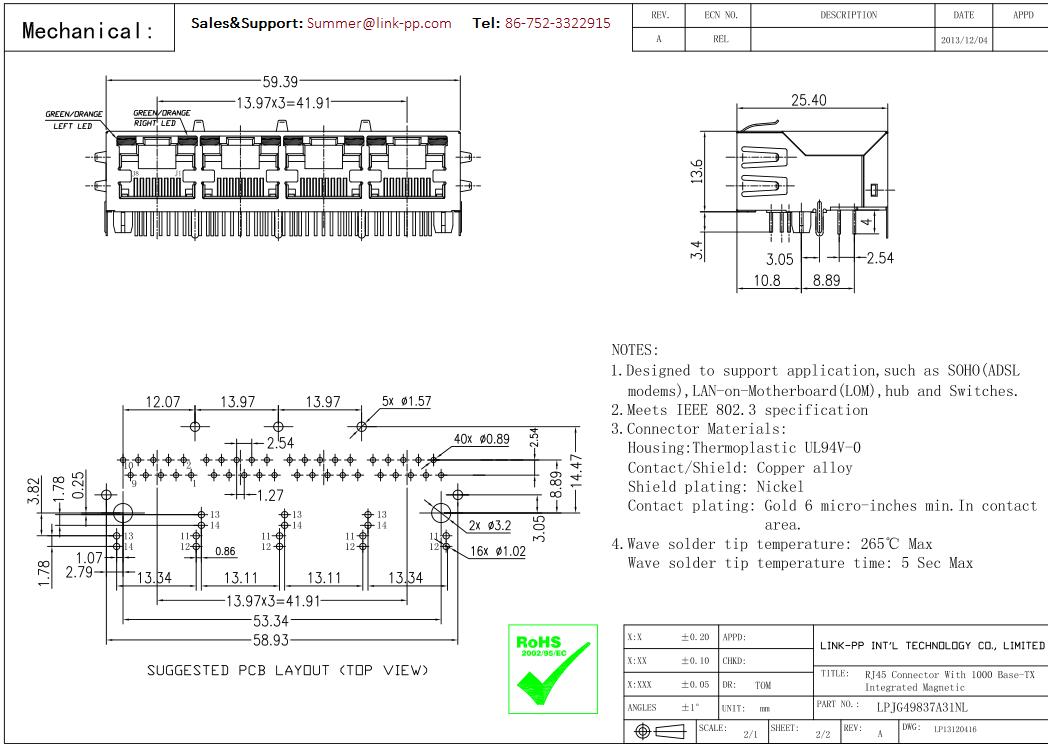

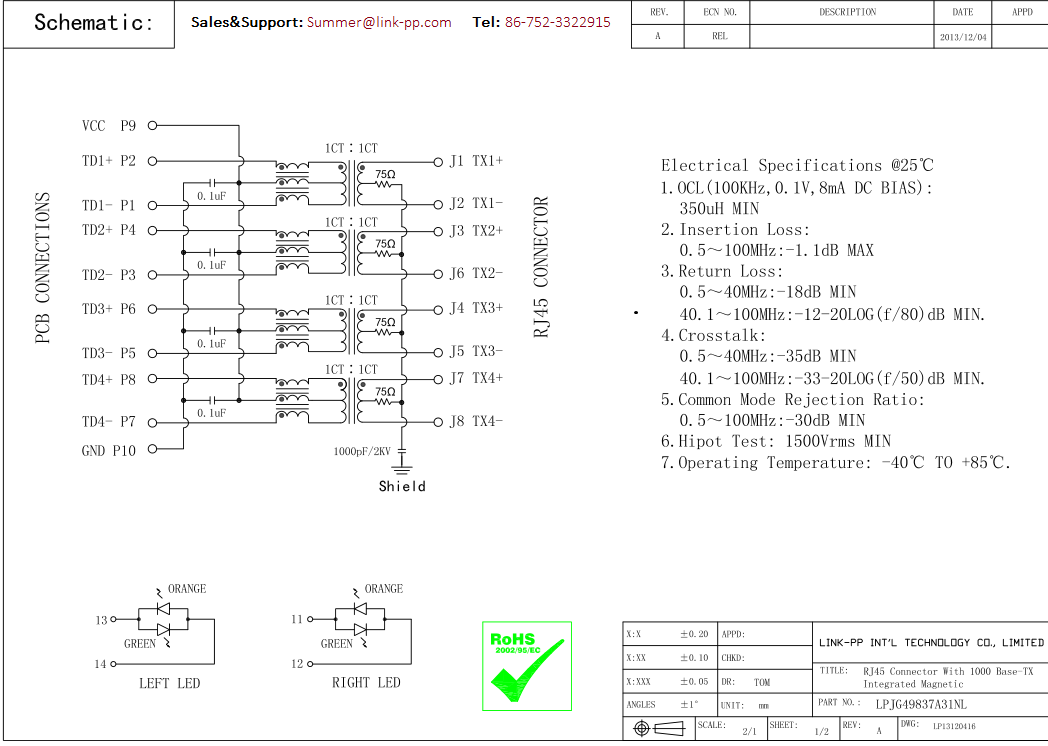

Specification

4 Port Gigabit Rj45 Mag Jack LPJG49837A31NL Shield With LEDs Industry Switches

4 Port Gigabit Rj45 Mag Jack LPJG49837A31NL Shield With LEDs Industry Switches

Why Choose LINK-PP

Quality

World’s Leader supplier of Integrated RJ45 Connector and Discrete Magnetic Transformers.

Original materials suppliers are selected and appointed by Tyco Electronic ,and then put into production at the standard of Tyco Electronic .

  • Manufactured under strict controls.
  • ISO 9001:2008
  • UL Certification
  • Reach Cetitifaction
  • RoHS compliance
  • OEM Of TE(Tyco) For 9 Years
  • Active Environmental policy
  • Every module tested (not just batch tested)
Main Customers

Texas Instruments INTEL SAMSUNG FLUKE EKF HUAWEI IBM CISCO
FLEXTRONICS JABIL Foxconn CANON Arduino -- --- ---

LINK-PP RJ45 Designed for BeagleBone Black of Texas Instruments

LINK-PP is the preferred supplier of Texas Instruments ,Samsung, Cisco ,Siemens and INTEL.

Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0 You will look at our logo "LINK-PP”on BeagleBone Board

LINK-PP ------------ Appointed Supplier And Supporter Of Embedded System for Ti
