1840866-1 Gigabit Ethernet Stacked RJ45 With Integrated Magnetic LPJG17547CNL

Name: 18408661 Gigabit Ethernet Stacked RJ45 With Integrated Magnetic LPJG17547CNL
Brand: LINK-PP
Price: 0.11 USD

1840866-1 Gigabit Ethernet Stacked RJ45 With Integrated Magnetic LPJG17547CNL Manufactures

Brand Name : LINK-PP

Model Number : 1840866-1

Certification : UL,RoHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000/60K

Price : $0.11-$24

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Delivery Time : Stock

Packaging Details : Tray

part Number : 1840866-1

Specification : LPJG17547CNL

Apllication : 1000Base-T 2x1 Port Rj45

Original Munafactuer : LINK-PP

Project Application : NETWORK INTERFACE CARD

Sample : Free

Contact Now

1840866-1 Gigabit Ethernet Stacked RJ45 With Integrated Magnetic LPJG17547CNL

Competitor Cross Reference

2X1 Port RJ45 Magnetic Jack with 1000 Base-T Integrated Magnetics,Without LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number	LPJG17547CNL
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	8
Diodes	NO DIODES
LED Option	WITHOUT LEDS
Latch	TAB UP/TAB DOWN
Number of Ports	2X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Package Height (Inches)	0.677
Package Height (mm)	17.20
Package Length (Inches)	1.121
Package Length (mm)	28.49
Package Width (Inches)	0.996
Package Width (mm)	25.30
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Speed	1000 BASE-T
Temperature	0 TO 70℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Why Choose LINK-PP

Quality

World’s Leader supplier of Integrated RJ45 Connector and Discrete Magnetic Transformers.

Original materials suppliers are selected and appointed by Tyco Electronic ,and then put into production at the standard of Tyco Electronic .

Manufactured under strict controls.

ISO 9001:2008

UL Certification

Reach Cetitifaction

RoHS compliance

OEM Of TE(Tyco) For 9 Years

Active Environmental policy

Every module tested (not just batch tested)

Main Customers

Texas Instruments	INTEL	SAMSUNG	FLUKE	EKF	HUAWEI	IBM	CISCO
FLEXTRONICS	JABIL	Foxconn	CANON	Arduino	--	---	---

LINK-PP RJ45 Designed for BeagleBone Black of Texas Instruments

LINK-PP is the preferred supplier of Texas Instruments ,Samsung, Cisco ,Siemens and INTEL.

Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0 You will look at our logo "LINK-PP”on BeagleBone Board

LINK-PP ------------ Appointed Supplier And Supporter Of Embedded System for Ti

1840866-1 Gigabit Ethernet Stacked RJ45 With Integrated Magnetic LPJG17547CNL

Product Tags:

stacked rj45 connectors

rj45 usb connector combo

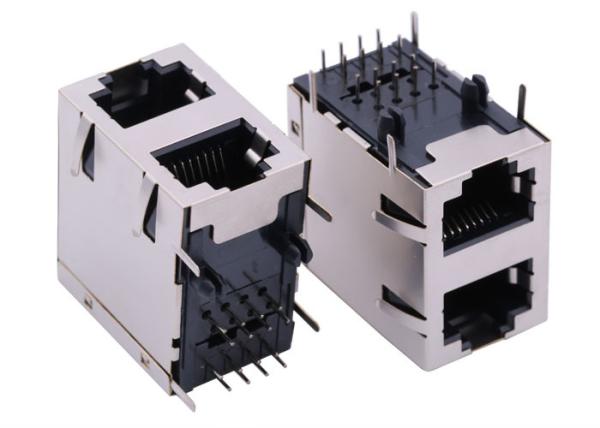

1840866-1 Gigabit Ethernet Stacked RJ45 With Integrated Magnetic LPJG17547CNL Images
