PT61020EL 1000BASE-T PoE+ Magnetic 1:1 24 PINS SMT Transformer

LINK-PP INT'L TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

PT61020EL 1000BASE-T PoE+ Magnetic 1:1 24 PINS SMT Transformer

  • 1
  • 2

Brand Name : LINK-PP

Model Number : PT61020EL

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Vendor P.N : PT61020EL

Manufacturer : SMT Ethernet Transformer

Pin No : 24 pins

Series : Single Port GigE Transformer

Termination Style : SMD/SMT

Isolation Voltage : 1500V

Samples : Free Offer

Cross Part : Available

Contact Now

Features of PT61020EL 1000BASE-T Magnetic

Feature Description
Application 10/100/1000 Base-T Ethernet with PoE/PoE+ support
Mounting Type Surface Mount (SMT)
Construction Potted enclosure for mechanical stability
PoE+ Capability Supports up to 650 mA for 1000BASE-T
Operating Temperature Range -40°C to +85°C
Isolation Voltage 1500 Vrms
Compliance IEEE 802.3 and IEC 60950-1
RoHS Compliant Yes
Dimensions

17.62 mm (L) × 16 mm (W) × 6 mm (H)

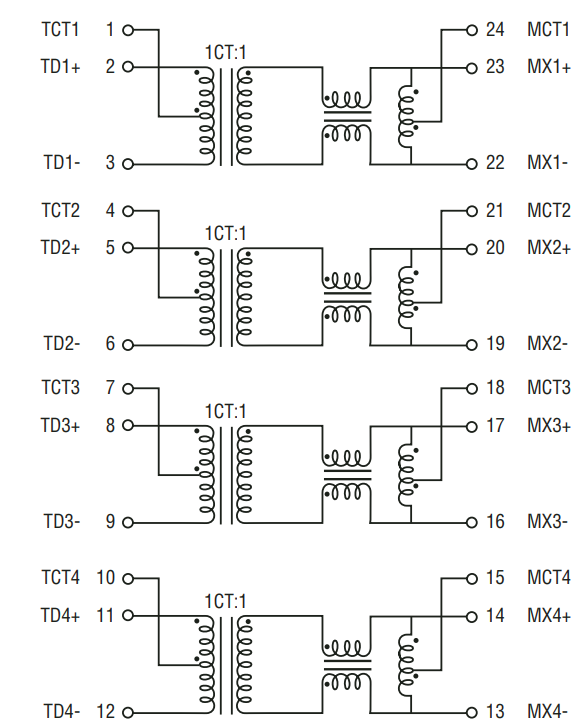

PT61020EL Datasheet:

PT61020EL 1000BASE-T PoE+ Magnetic 1:1 24 PINS SMT Transformer


Typical Applications of LAN Transformer Modules

  • Gigabit Ethernet Switches
  • PoE/PoE+ Powered Devices (PD)
  • Network Interface Cards (NICs)
  • Industrial Networking Equipment
  • IP Surveillance Systems
  • Wireless Access Points
