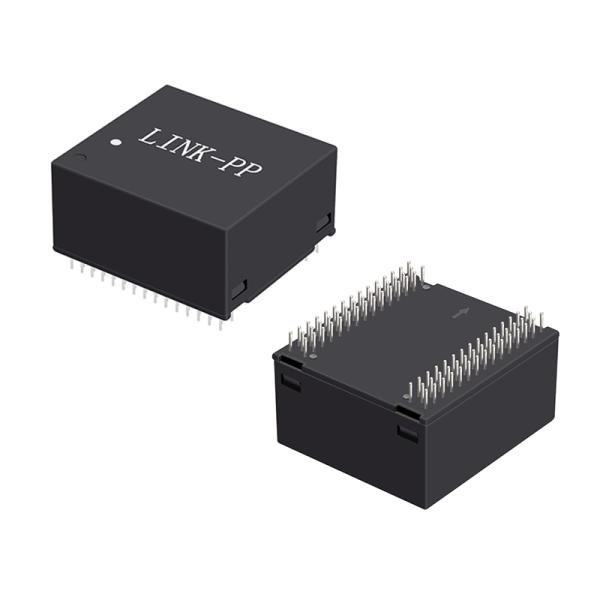

HB6604NL Quad Port PoE 1G Magnetics Modules Through-Hole

Name: HB6604NL Quad Port PoE 1G Magnetics Modules ThroughHole
Brand: LINK-PP
Price: 0.09 USD

Brand Name : LINK-PP

Model Number : HB6604NL

Certification : RoHS

Place of Origin : GuangDong, China

MOQ : 1pcs，Free samples

Price : $0.09-$1.83

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 6000K-PCS/Month

Delivery Time : In Stock Ship Within 3 Days

Packaging Details : Tube Packaging

Number of Channels/Ports : Quad Port

P/N : HB6604NL

PoE (Current Per Pair) : 600mA

Mounting Style : THT

PoE Rating : 4Pair PoE+ (6oW)

Isolation Voltage : 1500 VAC

Data Rate : 1000BASE-T

Turns Ratio : 1CT:1CT

Contact Now

Key Applications of HB6604NL PoE LAN Magnetics:

HB6604NL is a quad-port, 1000Base-T magnetic module designed for through-hole mounting. It is engineered to support 60W 4-Pair Power over Ethernet (4PPoE) applications. This high-performance LAN Transformer is ideal for network equipment requiring high port density and high-power PoE delivery. Key applications include:

Enterprise-grade network switches
High-performance routers
Network Video Recorders (NVRs)
Systems designed to power multiple devices such as IP cameras, VoIP phones, or wireless access points.

Features & Specifications of HB6604NL:

Feature	Specification	Description
Part Description	MOD,QUAD, 1GPP, 1:1,4PPoE 60W, 88Pin THD, NPB, TU	Module, Quad-Port, 1Gbps, 1:1 Turns Ratio, 4-Pair PoE 60W, 88-Pin Through-Hole, Lead-Free, Tube Packaging
Data Rate	1000BASE-T	Supports Gigabit Ethernet speeds.
Number of Ports	Quad	Integrates four independent Ethernet channels into a single compact module, optimizing PCB real estate.
PoE Capability	4PPoE 60W	Supports 4-Pair Power over Ethernet, delivering up to 60 watts, compliant with the IEEE 802.3bt standard.
Isolation Voltage	1500 VAC	Provides 1500 Volts (AC) of dielectric isolation, enhancing safety and signal integrity.
Turns Ratio	1CT:1CT	Features a 1:1 center-tapped turns ratio, a common standard for Ethernet magnetics.
Operating Temp.	0°C to +70°C	Suitable for commercial-grade operating environments.
Mounting Style	Through-Hole	Utilizes a traditional through-hole mounting method for a robust and reliable mechanical connection.
Compliance	RoHS Compliant	Yes. Adheres to the Restriction of Hazardous Substances (RoHS) directive; specified as lead-free (NPB - No-Lead Process B).

HB6604NL Datasheet:

HB6604NL Quad Port PoE 1G Magnetics Modules Through-Hole
